33kV High Voltage P-13 Post Insulator for Reliable Performance

Place of Origin: Jiangxi, China
Brand: Risheng PX
Model Number:33kV High Voltage P-13 Post Insulator
Material: Porcelain Material
Application: High Voltage Transformer
Weight: 10.95KN
Certification:  ISO9001 and Type Test
    • 简介: 20kg
    • 产品分类: Interior wall
    • 产品类型: Finish
    • 关键词: Matt
    • 产品链接: No
    Contact us
    Product Details

      We specialize in supplying high-performance 33kV outdoor post porcelain insulators (along with 11kV models), designed specifically for switchgear and pole-mounted substation installations. These components are critical for isolating and supporting electrical conductors outdoors, reliably withstanding harsh conditions like extreme temperatures, humidity, and pollution while maintaining stable insulation performance. Our matching outdoor pole-mounted isolators and insulator switches offer long-term operational reliability, suitable for both distribution and transmission substations. All our products undergo rigorous type testing at XIHARI (a leading electrical equipment certification body), ensuring compliance with key industry safety and performance standards such as voltage withstand, mechanical load capacity, and environmental durability. Additionally, we balance quality and cost-effectiveness by using premium corrosion-resistant, high-dielectric porcelain paired with streamlined manufacturing—delivering competitive pricing without sacrificing quality. Whether for new substation projects or replacement needs, our 33kV outdoor post porcelain insulators provide a durable, safe, and economical solution for electrical infrastructure.
    Product detail

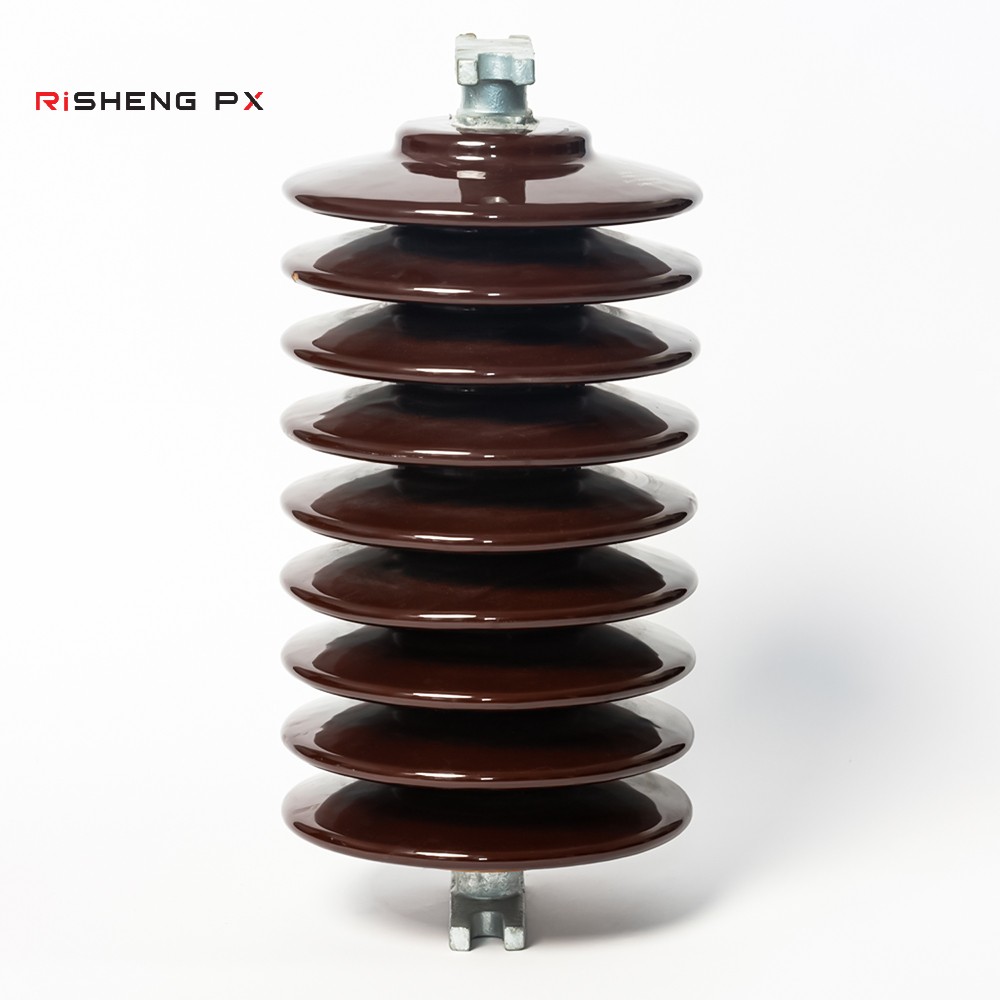

    1 (1).jpgP-13-9伞0T6A7004.jpg

    Specifications

    Type P-13
    Dimension
    Diameter(D) mm 160
    High(H) mm 380
    Leakage distance (Creepage  distance) mm 1000
    Mechanical Values
    Cantilever strength kn 2.3
    Electric Values
    Rated voltage kv 33
    Full wave impulse flashover oltage kv 230
    Wet power frequency flasho er voltage kv 95
    Packing and Shipping Date
    Net weight kg 9.6
