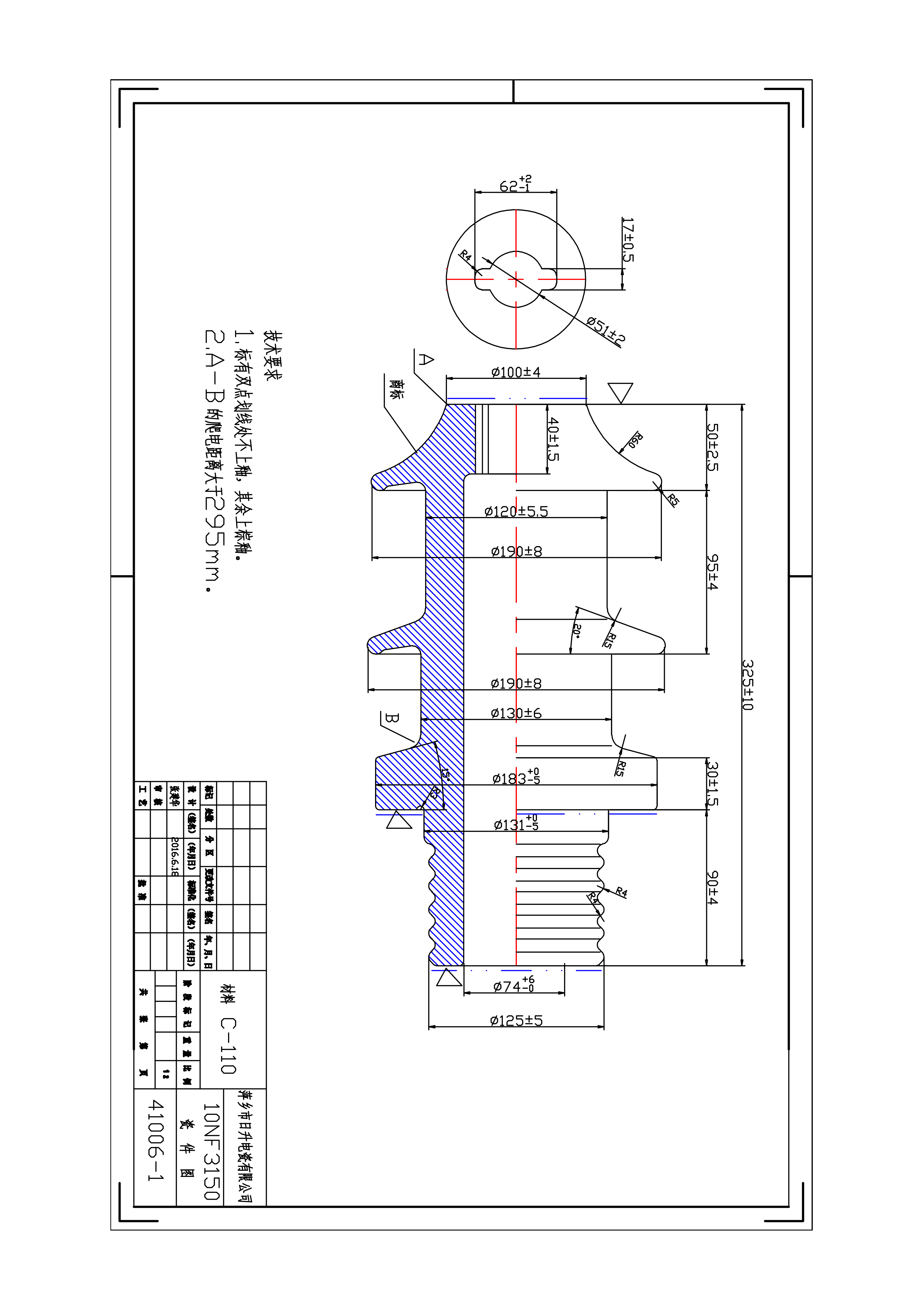

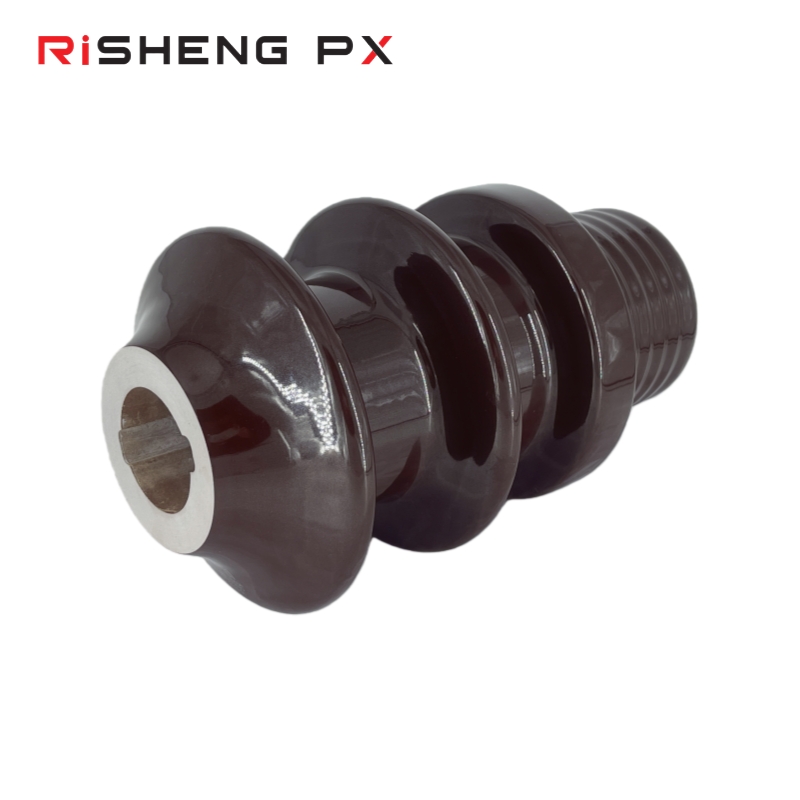

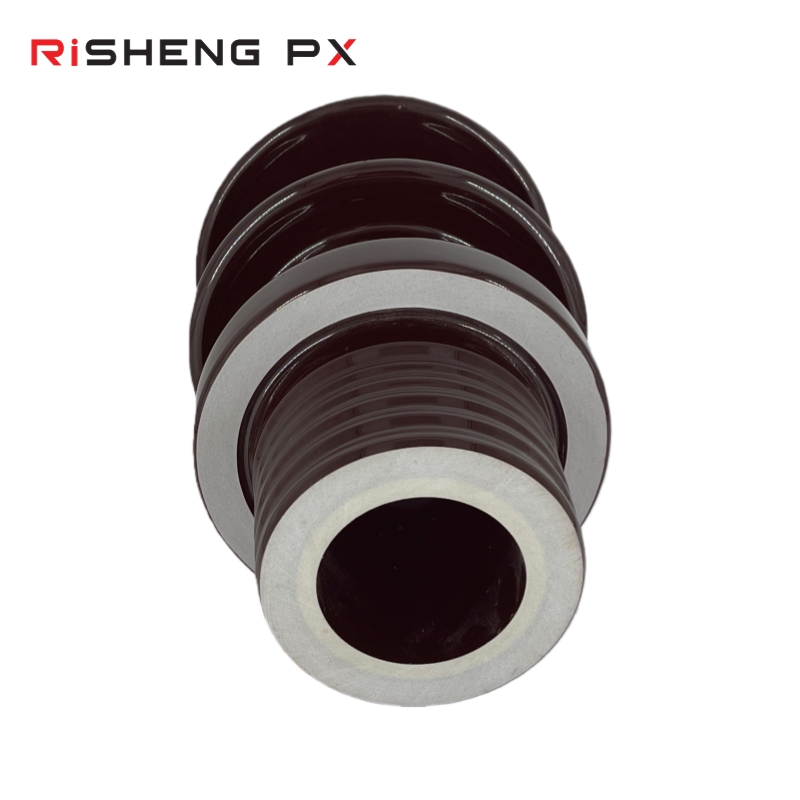

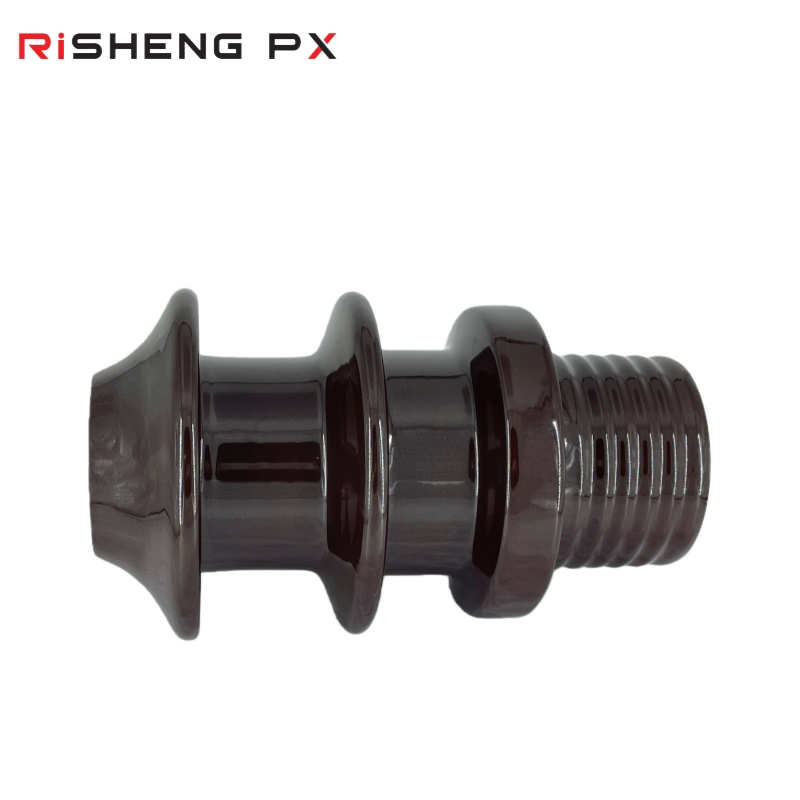

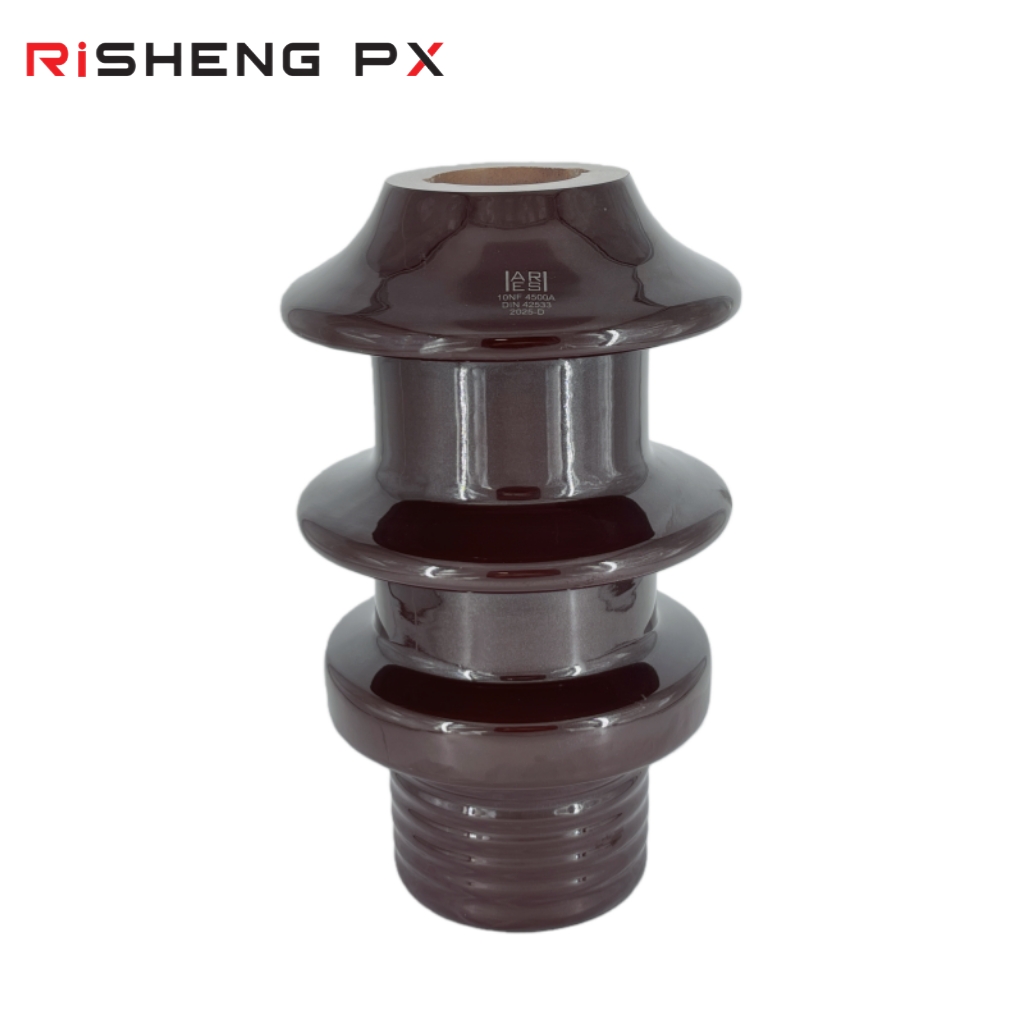

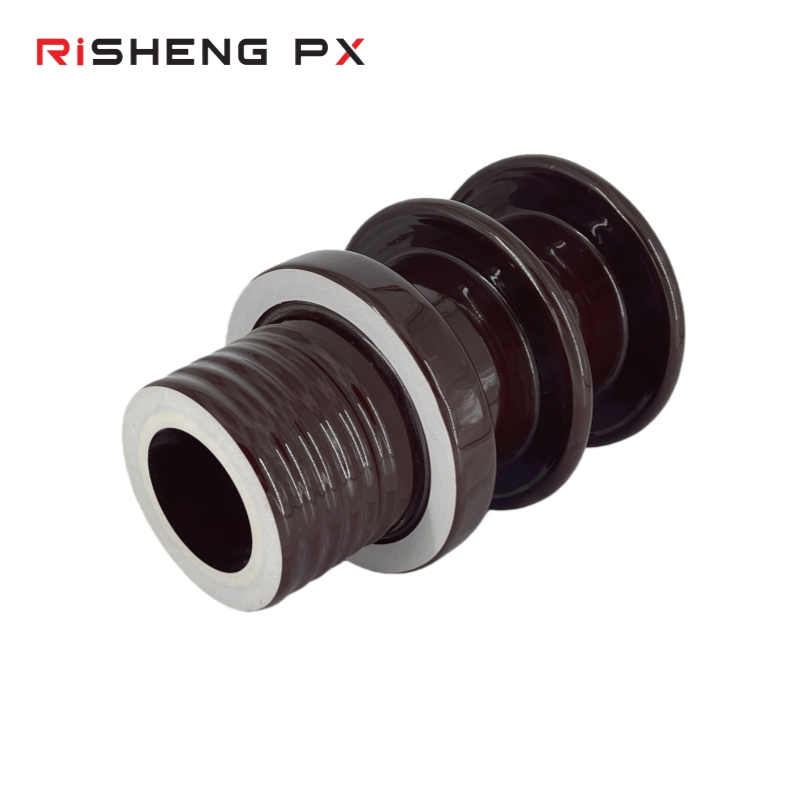

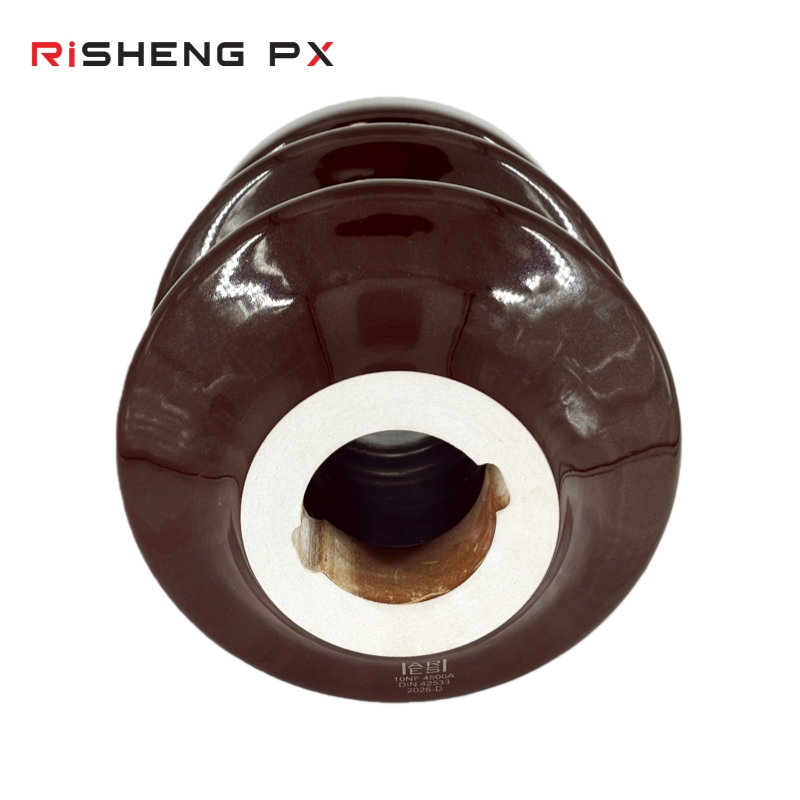

DIN 42532 10NF3150 Porcelain Insulator for Transformer Applications
Certified to DIN 42532 standard, this 3-piece high-voltage porcelain insulator is engineered for medium & high-voltage transformers. Made of premium porcelain, it delivers excellent insulation, pollution resistance and mechanical strength, effectively isolating and supporting transformer lead-out wires. Ideal for oil-immersed/dry-type transformers, substations and industrial power systems. In-stock for bulk orders.
product details
| Bushings are manufactured to DIN 42530,42539,42531,52432,42533,42534 | |||||||||
| PART NUMBER | DESCRIPTION | Kv RATING | I RATING | TANK HOLESIZE | BIL | PF DRY | PF WET | CREEPAGE | STEM CONNECT |
| 10NF250 | DIN 42531 10NF250 | 12 | 250 | 78 | 75 | 28 | - | 305 | M12 |
| 10NF630 | DIN 42532 10NF630 | 12 | 630 | 90 | 75 | 28 | - | 305 | M20 |
| 10NF1000 | DIN 42533 10NF1000 | 12 | 1000 | 110 | 75 | 28 | - | 295 | M30 |
| 10NF2000 | DIN 42533 10NF2000 | 12 | 2000 | 135 | 75 | 28 | - | 295 | M42 |
| 10NF3150 | DIN 42533 10NF3150 | 12 | 3150 | 135 | 75 | 28 | - | 295 | M48 |
