Hot Sale ANSI 53-1 Ceramic Porcelain Spool Insulators

Place of Origin: Jiangxi, China

Brand: Rishenge PX

Material: Ceramic Porcelain

Application: Low Voltage Power Transmission

Weight: 0.2KG

Certification: ISO9001 and Type Test

    Contact us
    Product Details

    Product Description

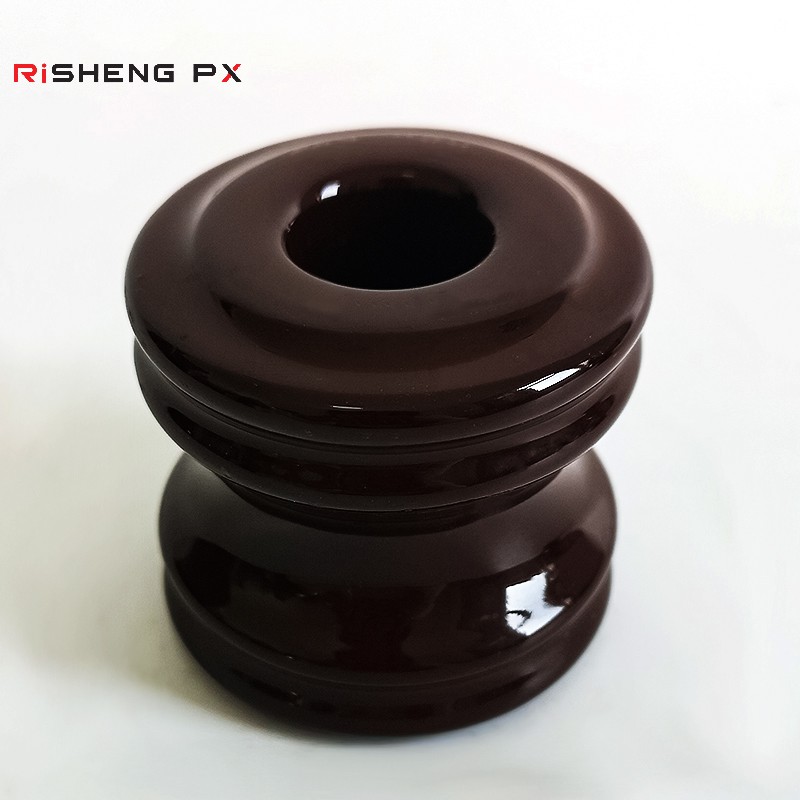

    The ANSI 53-1 Ceramic Porcelain Spool Insulator is a high-performance insulating component engineered for low-voltage power transmission and distribution systems. Constructed from premium ceramic porcelain, it features a robust spool structure that delivers both reliable electrical insulation and mechanical support between conductors and utility towers.

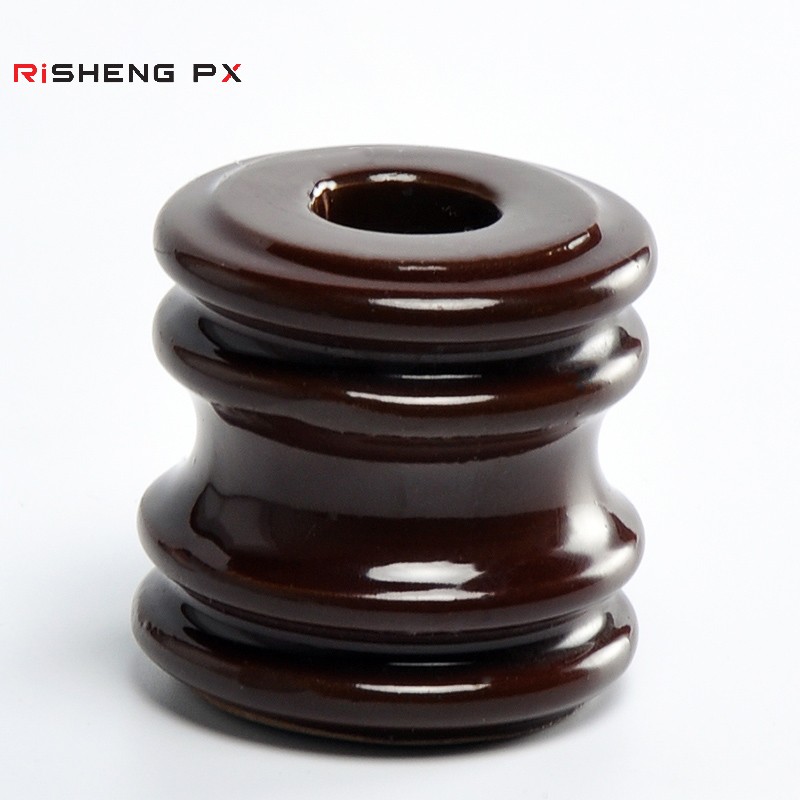

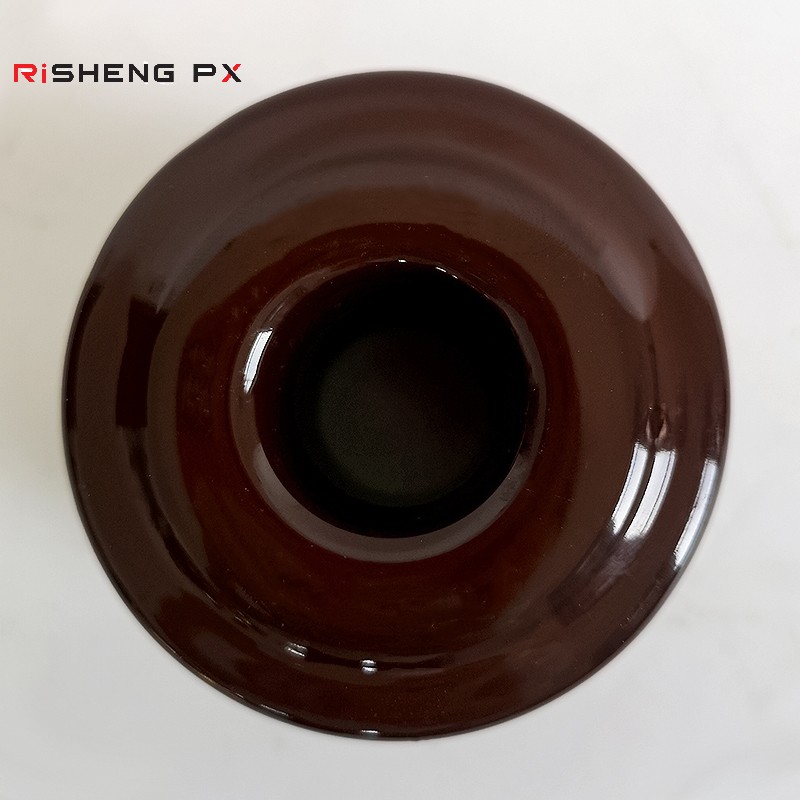

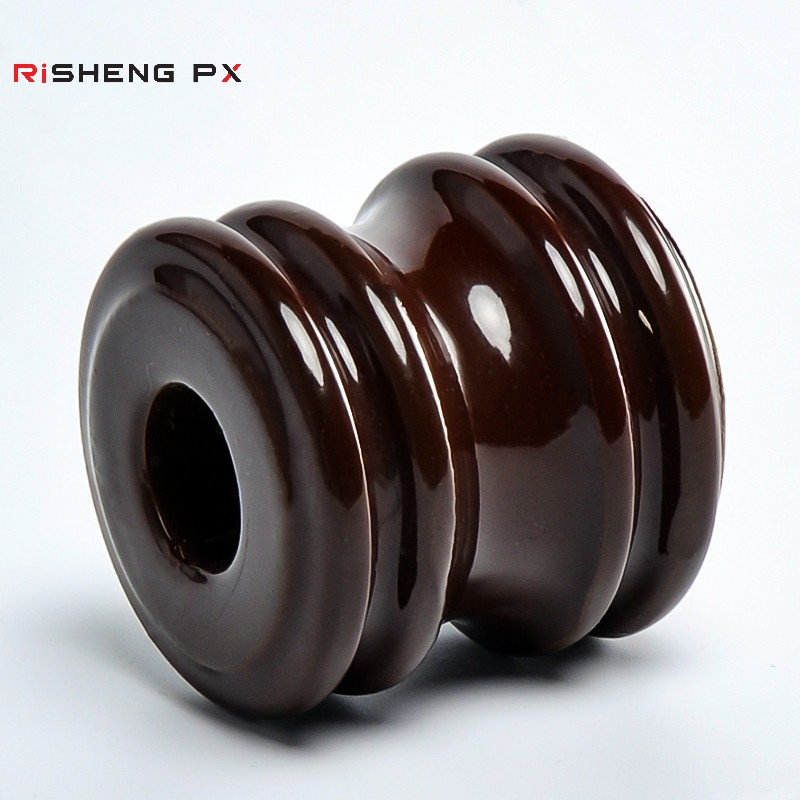

    Detailed Photos
    Product Parameters

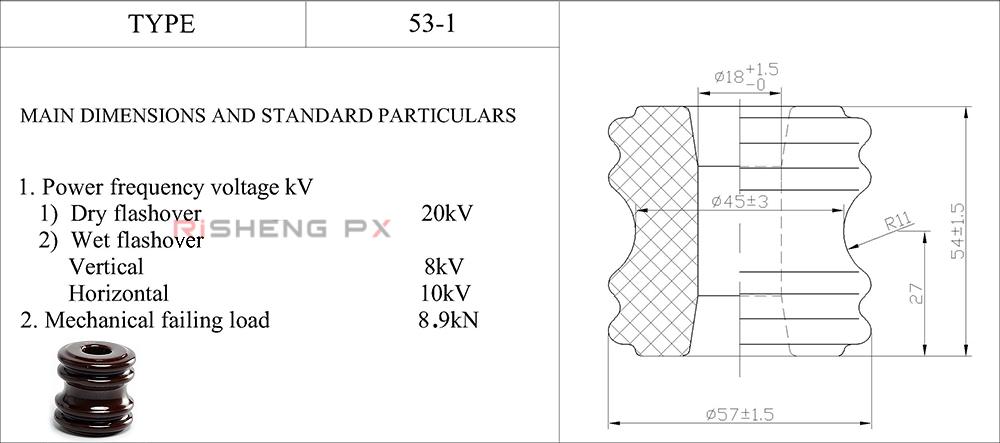

    ANSI Class 53-1 53-2 53-3 53-4 53-5
    Mechanical Failing Load-kN 8.9 13.3 17.8 20 26.7
    Low Frequency Dry Flashover Voltage,-kV 20 25 25 25 35
    Low Frequency Wet Flashover Voltage Vertical-kV 8 12 12 12 18
    Horizontal-kV 10 15 15 15 25
    Dimensions, mm H - Height 54 76 81 76 105
    D - Diameter 57 79 76 105 102
    N - Neck Diameter 45 45 45 73 73
    E - Hole Diameter 18 18 18 18 18
    W-Wire Grooves Radius 11 18 11 16 11
