Pin Type Ceramic Insulators
0102030405

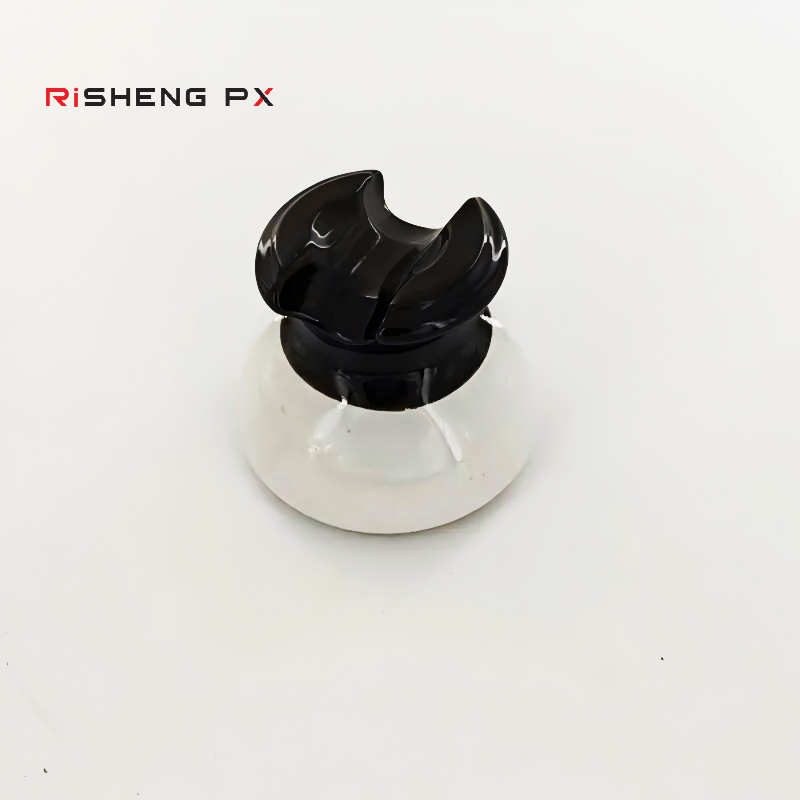

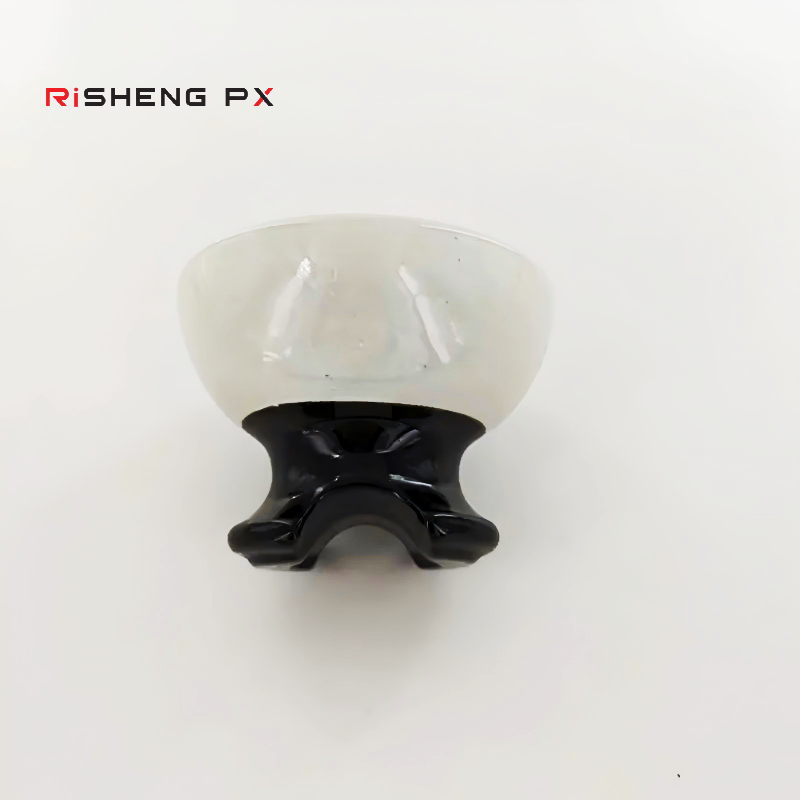

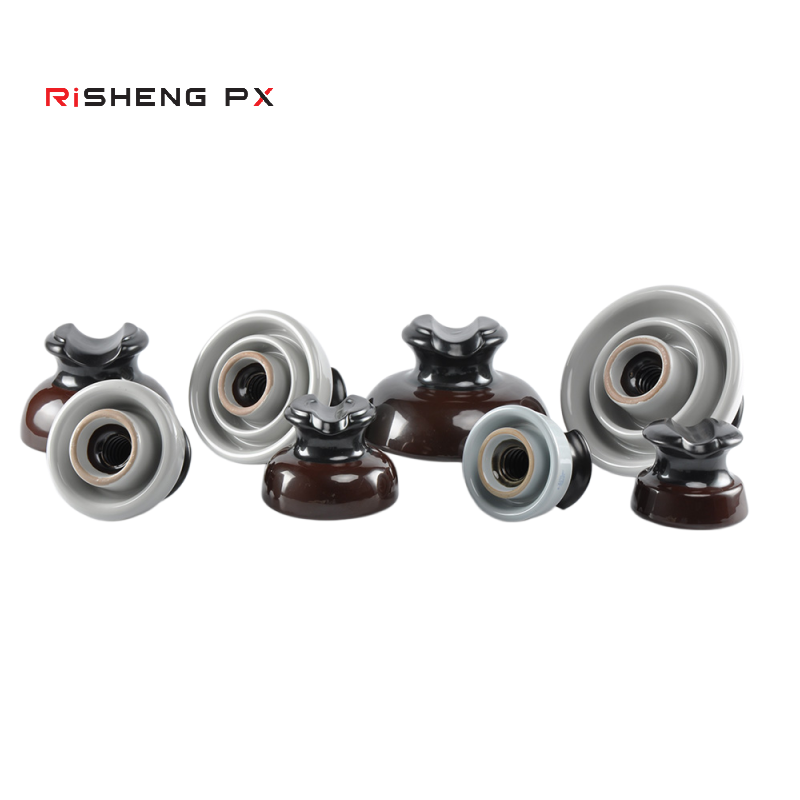

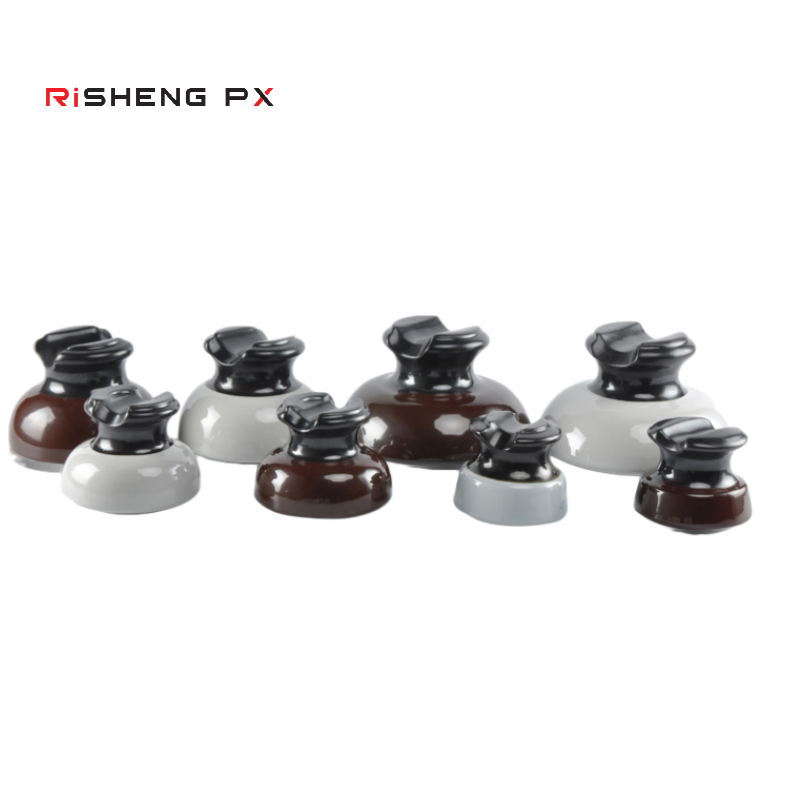

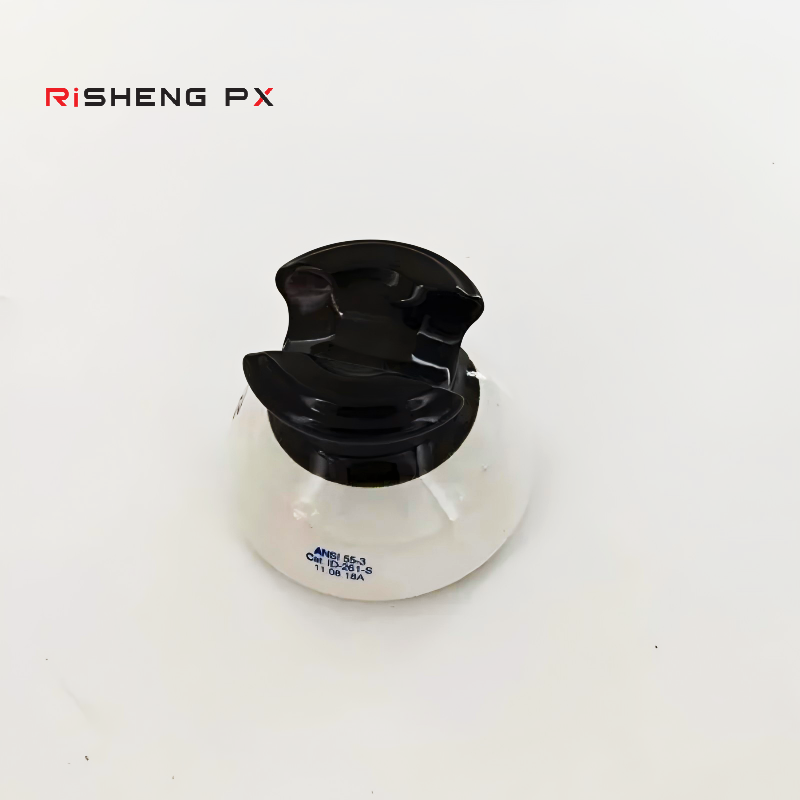

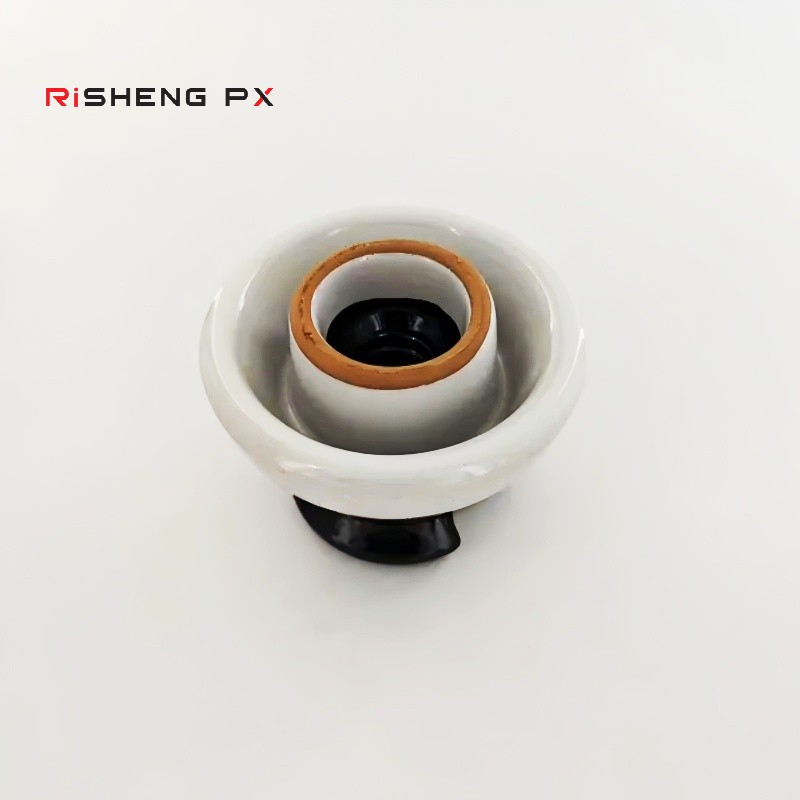

Premium 11kV ANSI 55-1 High Voltage Pin Type Insulator Pin Porcelain Insulators
Descrition
| Pin-type porcelain insulators | |||||||
| ANSI Class | 55-1 | 55-2 | 55-3 | 55-4 | 55-5 | 55-6 | |
| Dimensions | |||||||
| Diameter | mm | 83 | 95 | 121 | 142 | 178 | 213 |
| Height | mm | 89 | 83 | 95 | 111 | 124 | 140 |
| Creepage distance | mm | 102 | 127 | 178 | 229 | 305 | 381 |
| Dry arcing distance | mm | 57 | 86 | 114 | 127 | 159 | 203 |
| Minimum pin height | mm | 102 | 102 | 127 | 127 | 152 | 191 |
| Mechanical Values | |||||||
| Cantilever strength | kn | 13.6 | 11.4 | 11.4 | 13.6 | 13.6 | 13.6 |
| Electrical Values | |||||||
| Type application voltage | kv | 7.2 | 7.2 | 11.5 | 13.2 | 15 | 23 |
| Low frequency dry flashover voltage | kv | 35 | 45 | 55 | 65 | 80 | 100 |
| Low frequency wet flashover voltage | kv | 20 | 25 | 30 | 35 | 45 | 50 |
| Critical impulse flashover voltage,positive | kv | 50 | 70 | 90 | 105 | 130 | 150 |
| Critical impulse flashover voltage,negative | kv | 70 | 85 | 110 | 130 | 150 | 170 |
| Low frequency puncture voltage | kv | 50 | 70 | 90 | 95 | 115 | 135 |
| Radio influence Voltage Data | |||||||
| Test voltage RMS to ground | kv | 5 | 5 | 10 | 10 | 10 | 22 |
| Maximum RIV at 1000kHz | μv | 50 | 50 | 50 | 50 | 50 | 100 |
| Packing and Shipping Data | |||||||
| Net weight,approximate | kg | 1.2 | 1.4 | 2.4 | 3.7 | 6.4 | 8.5 |
