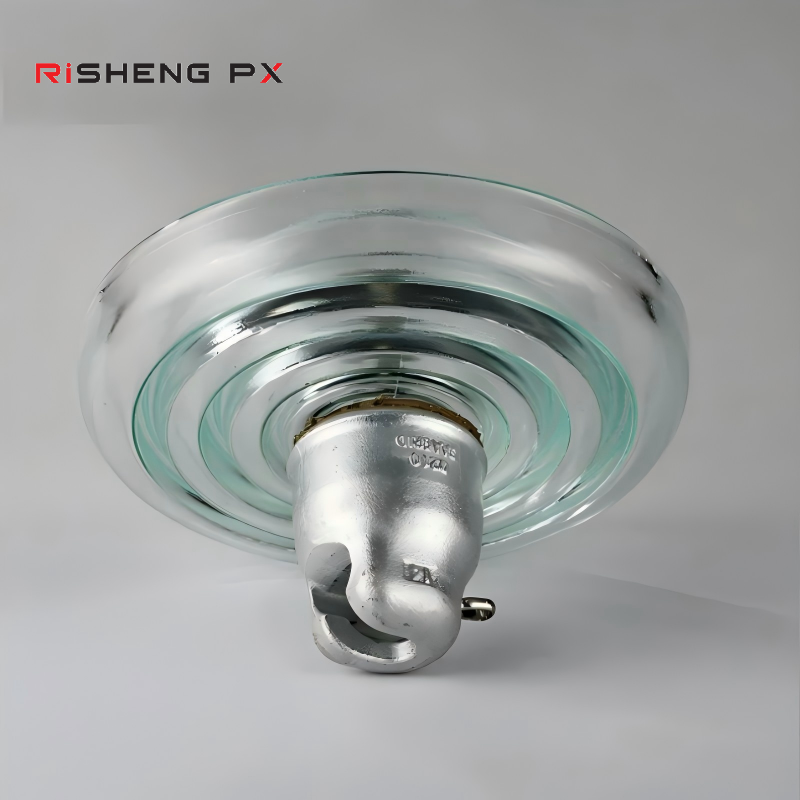

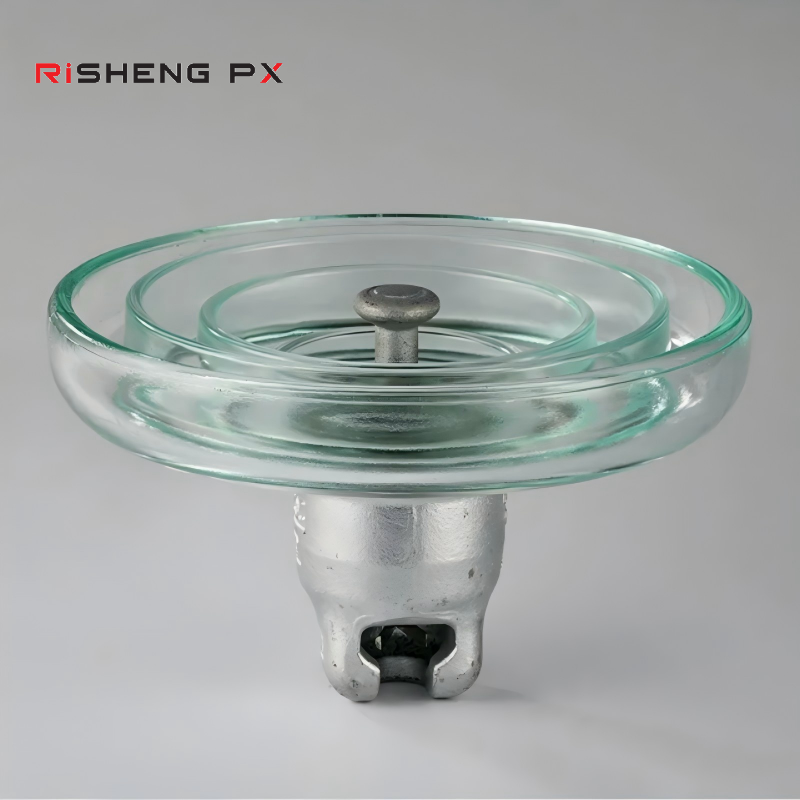

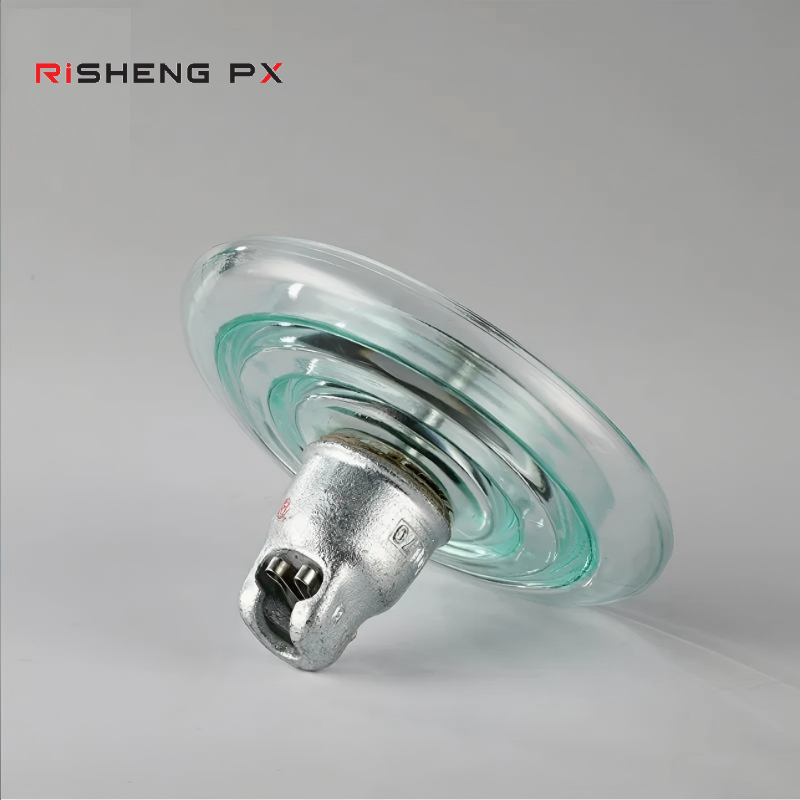

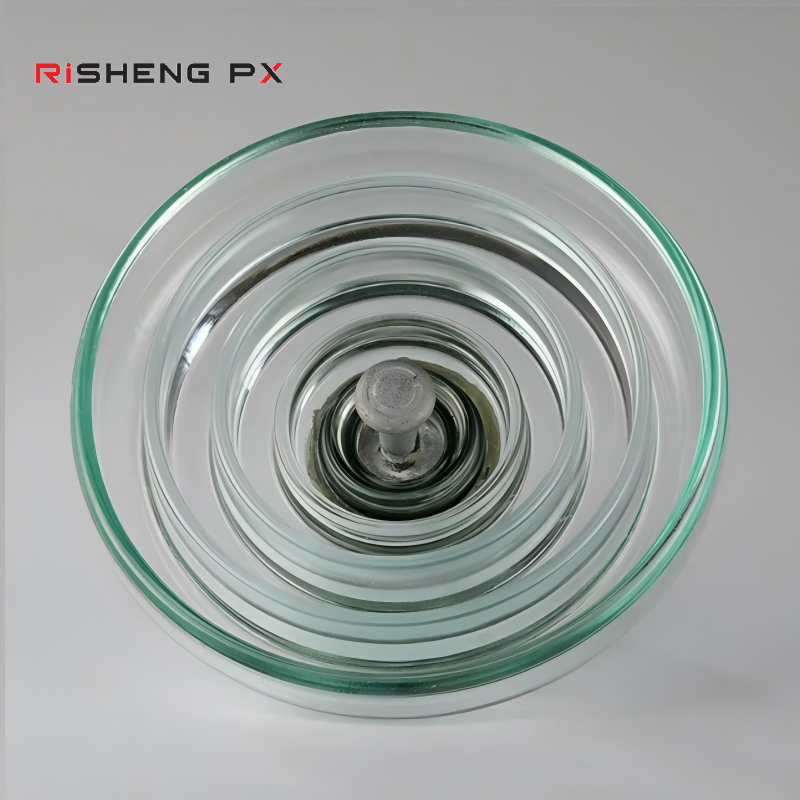

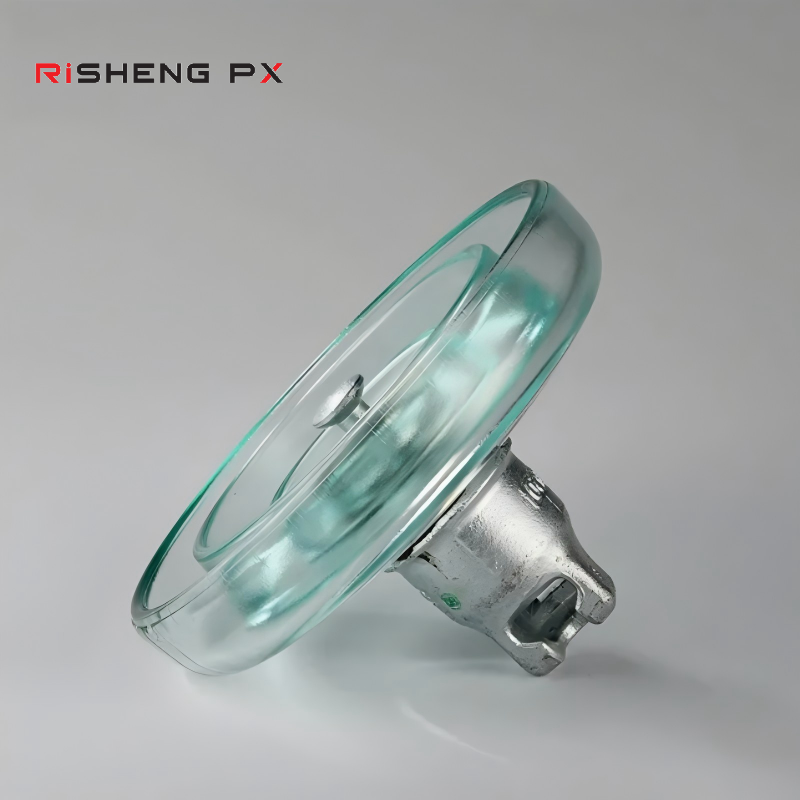

Premium Anti-Fog Glass Disc Suspension Insulators U70blp 70KN Glass Insulators

Place of Origin: Jiangxi, China

Brand: Rishenge PX

Model Number: U70BLP Glass Insulator

Material: Glass

Application: Power Transmission and Distribution Systems

Rated Voltage: High Voltage

Certification: ISO9001 and Type Test

Product Details

IEC Type	Diameter D(mm)	Height H(mm)	Creepage Distance (mm)	Size of Coupling (mm)	Mechanical Failing Load (KN)	Mechanical Routine Test (KN)	Power Frequency Withstand Voltage Dry (KV)	Power Frequency Withstand Voltage Wet (KV)	Lighting Impulse Withstand Voltage (KV)	Min Power Frequency Puncture Voltage (KV)	Unit Weight (kg)
U70BP/146	260	146	400	16	70	35	80	45	110	130	5.0
U70BLP/146	280	146	450	16	70	35	85	50	125	130	5.5
U70BP/146	320	146	550	16	70	35	90	55	140	130	7.5
U100BLP/146	260	146	400	16	100	50	80	45	110	130	5.0
U100BLP/146	280	146	450	16	100	50	85	50	125	130	5.5
U100BP/146	320	146	550	16	100	50	90	55	140	130	7.5
U120BLP/146	260	146	400	16	120	60	80	45	110	130	5.0
U120BP/146	280	146	450	16	120	60	85	50	125	130	5.5
U120BP/146	320	146	550	16	120	60	90	55	140	130	7.5
U160BSP/155	280	155	450	20	160	80	85	50	125	130	7.0
U160BP/170	280	170	450	20	160	80	85	50	125	130	7.2
U160BLP/170	320	170	550	20	160	80	90	55	140	130	9.2
U160BP/155	320	155	550	20	160	80	90	55	140	130	9.0
U160BSP/146	320	146	550	20	160	80	90	55	140	130	8.8
U210BP/170	320	170	550	20	210	105	90	55	140	130	10.0
U240BP/170	320	170	550	24	240	120	90	55	140	130	10.5
U300BP/195	390	195	710	24	300	150	95	60	150	130	14.0
