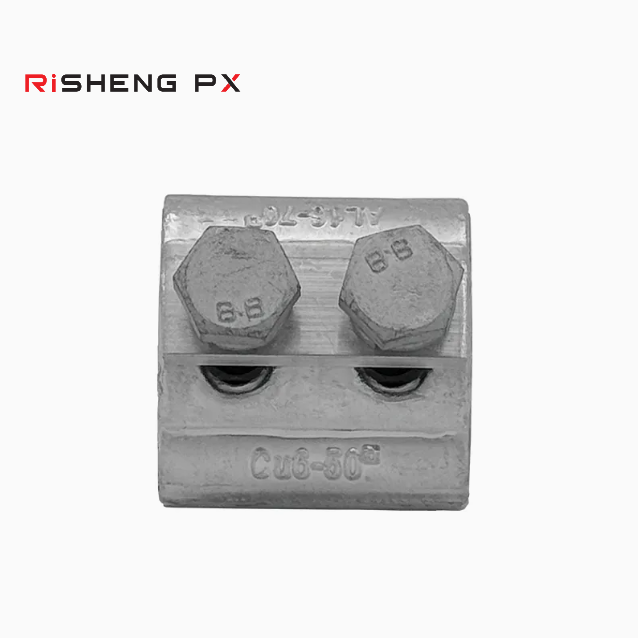

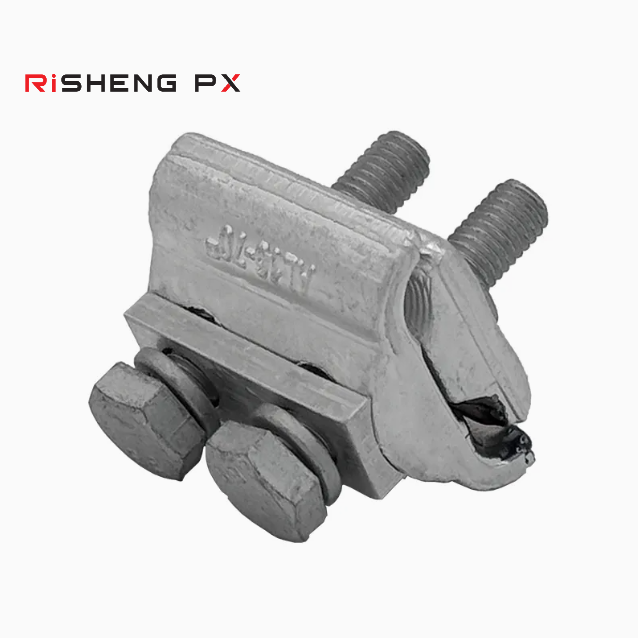

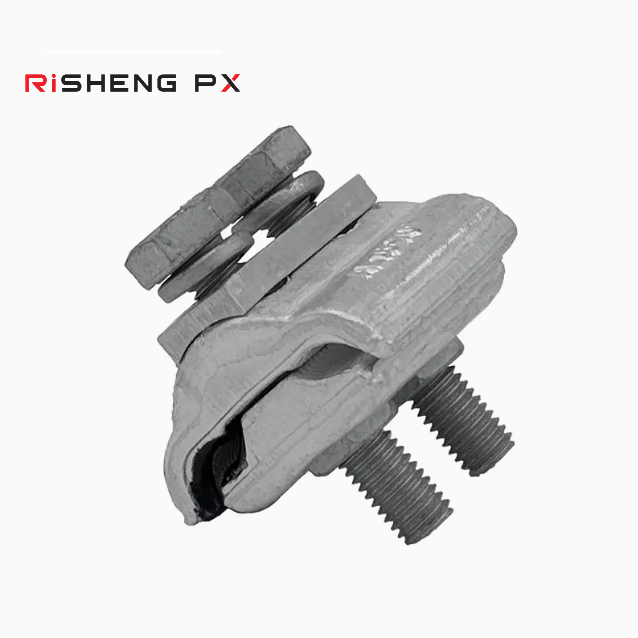

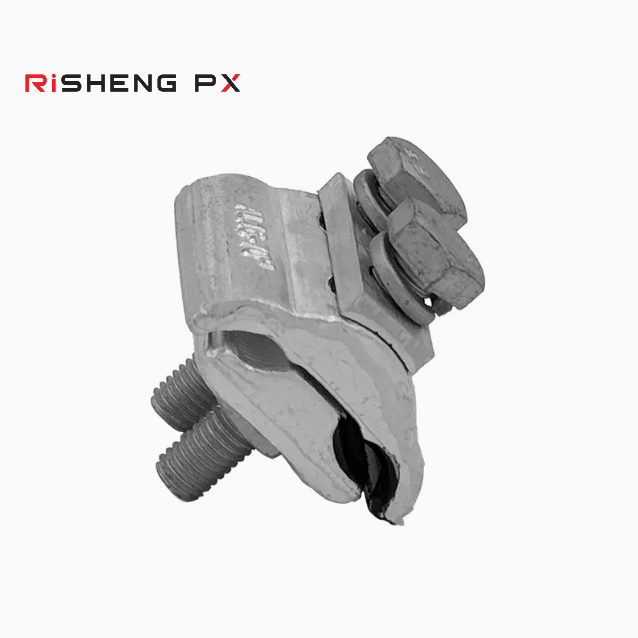

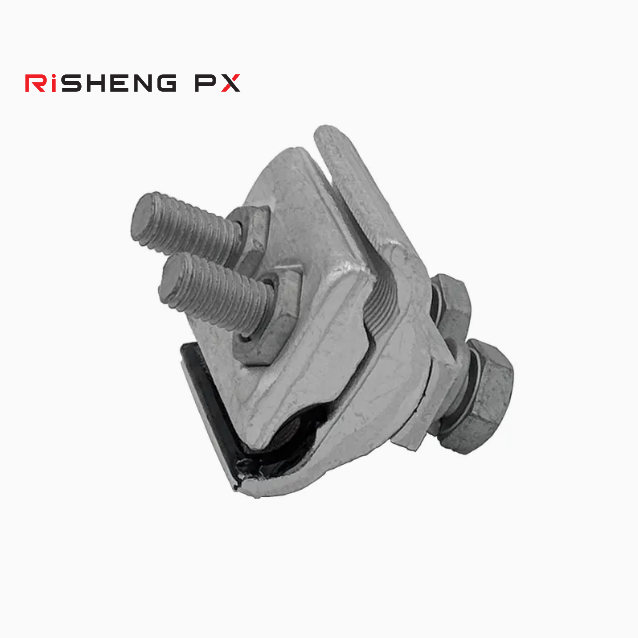

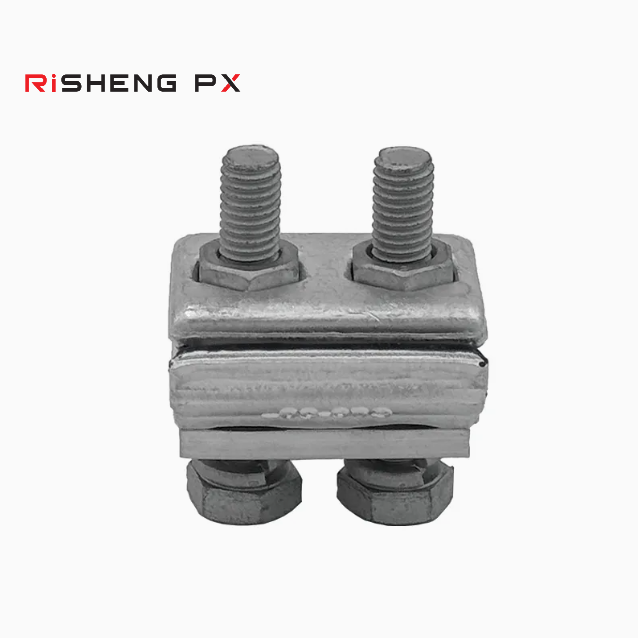

APG PG Clamp Aluminum Parallel Groove Clamp

Structural Features:

1. Oxidize-Resistant Aluminum Alloy: Offers excellent corrosion resistance and maintains the clamp’s integrity over time.
2. Teeth-Shape Structure: Enhances grip and electrical contact, ensuring a secure connection.
3. Interlocking Design: Prevents parts from getting lost during the installation process.
4. Arc Embrace: Holds the conductor firmly in place, preventing any movement.

Insulation Cover Performance Features:

1. Withstand Voltage: Capable of withstanding voltage up to 18kV for one minute without breakdown.
2. Insulation Resistance: Exhibits high insulation resistance, rated at greater than 1.0 x 10^14 ohms.
3. Weather Proof Performance: Demonstrates excellent performance after 1008 hours of artificial climate aging tests.

Installation Process:

1. Conductor Preparation: Prepare the aluminum or ACSR conductors by cleaning and measuring for an accurate fit.
2. Clamp Assembly: Position the APG PG Clamp around the conductors, ensuring the teeth-shaped structure is properly aligned.
3. Bolt Tightening: Secure the clamp with hot-dip galvanized steel bolts, ensuring a tight and secure fastening.
4. Insulation Verification: After installation, verify the clamp’s electrical insulation properties to confirm safety and performance.

Applicable Environmental Conditions:

1. Temperature Range: Designed to operate within a wide temperature range, typically -40°C to +105°C, suitable for diverse climates.
2. UV Resistance: The clamp’s materials are resistant to UV radiation, ensuring long-term outdoor performance.
3. Chemical Resistance: Engineered to resist common environmental chemicals, preserving the clamp’s integrity in various conditions.
4. Humidity Tolerance: Built to perform well in high humidity environments, maintaining electrical safety and performance.
