High Voltage Transformer Bushing
01

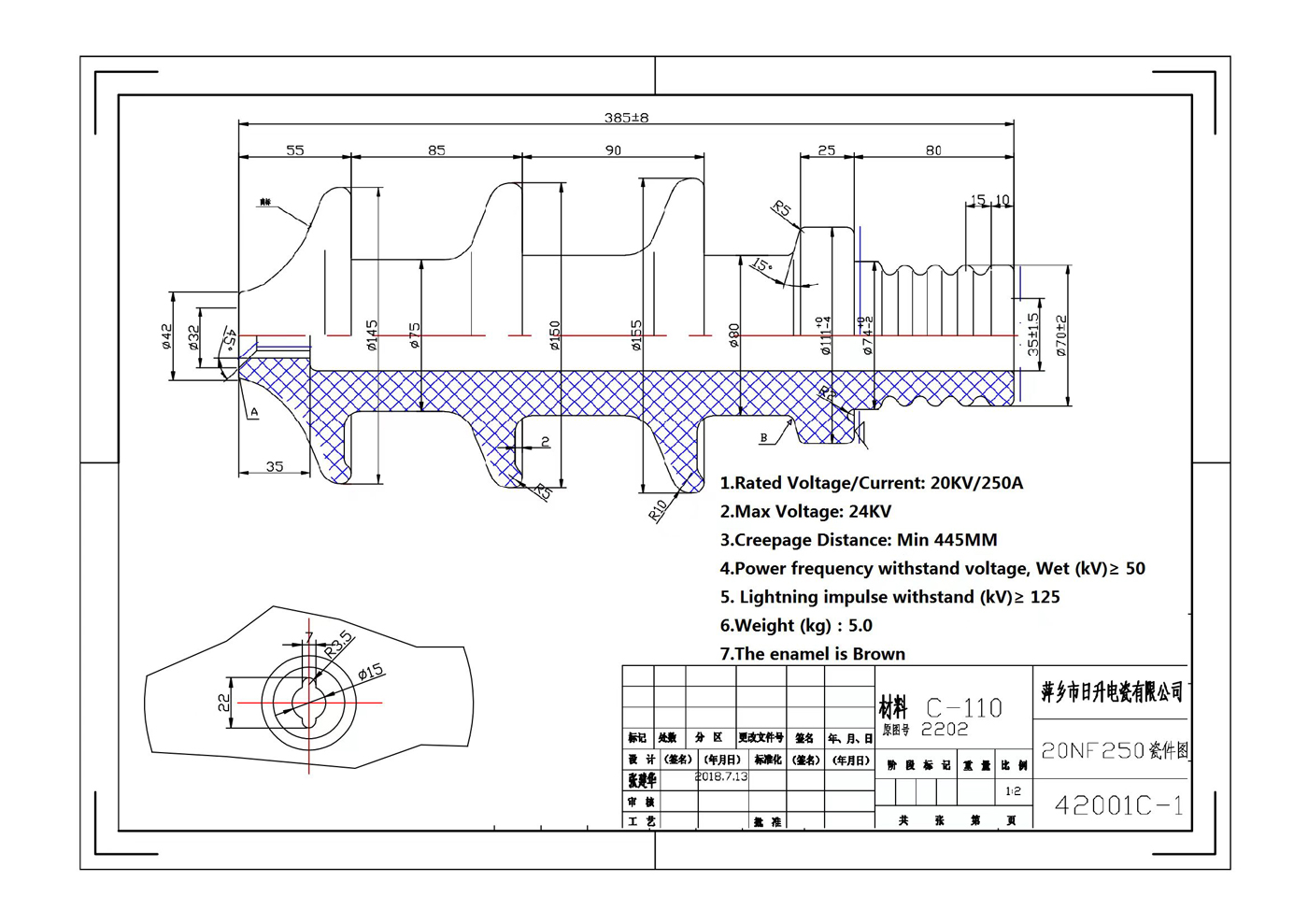

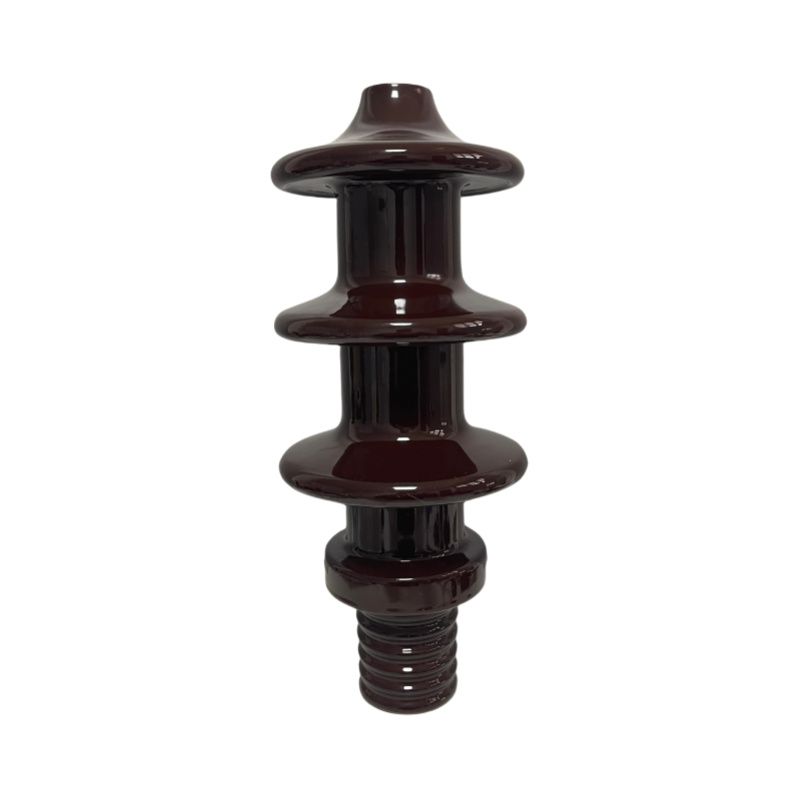

DIN 20NF250 Transformer Bushing Insulators
Video
Insulating the Leading Wires
Insulators primarily serve as insulators between the wires and other conducting surfaces within the transformer. In high-voltage transformers, this insulation is essential to prevent short circuits and ensure the safe flow of electricity. The insulator materials, typically made of ceramic or glass, offer excellent dielectric properties, providing reliable insulation even under extreme voltage conditions.
Mechanical Support
In addition to their insulating properties, insulators also provide mechanical support to the transformer’s components. They help hold the wires in place, ensuring that they do not come into contact with each other or other conducting surfaces. This prevents wear and tear on the wires and extends their operational life.
Electrical Stability
Insulators play a crucial role in maintaining electrical stability in high-voltage transformers. They help distribute the electrical field evenly, preventing partial discharge and dielectric breakdown. By minimizing these electrical instabilities, insulators enhance the overall reliability and efficiency of the transformer.
Reducing EMI Interference
Electromagnetic interference (EMI) can disrupt the operation of electronic equipment, causing malfunctions and potential equipment damage. Insulators contribute to reducing EMI by providing a barrier between the conducting elements and the surrounding environment. This minimizes interference and ensures reliable operation of the transformer and connected equipment.
Thermal Management
An insulator also contributes to thermal management in high-voltage transformers. They help dissipate heat generated during operation, preventing overheating and potential damage to the transformer’s components. The insulators’ thermal properties help maintain a stable operating temperature, ensuring optimal performance and durability.
