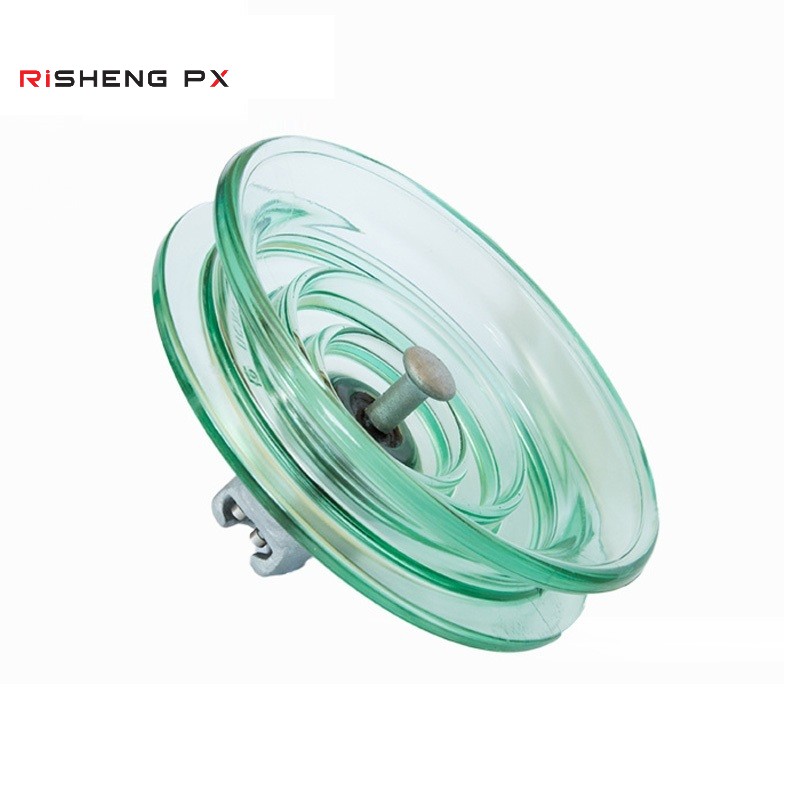

Anti fog Suspension Fiber Glass Insulator未标题-2.jpg
Anti fog Suspension Fiber Glass Insulator.jpg

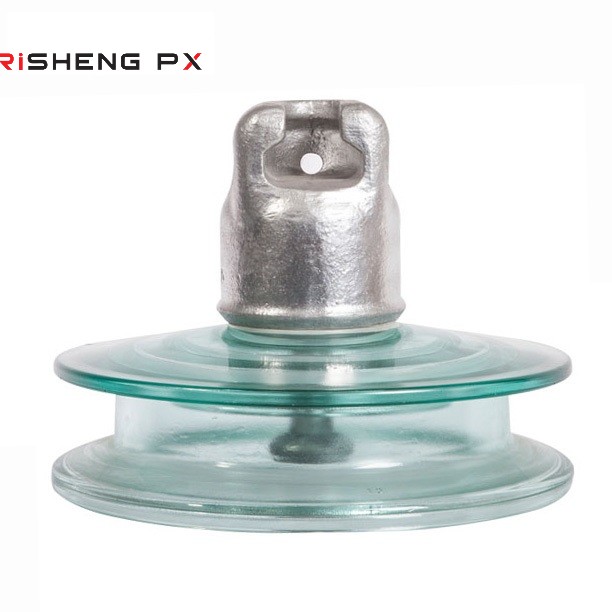

Anti fog Suspension Fiber Glass Insulator111.jpg

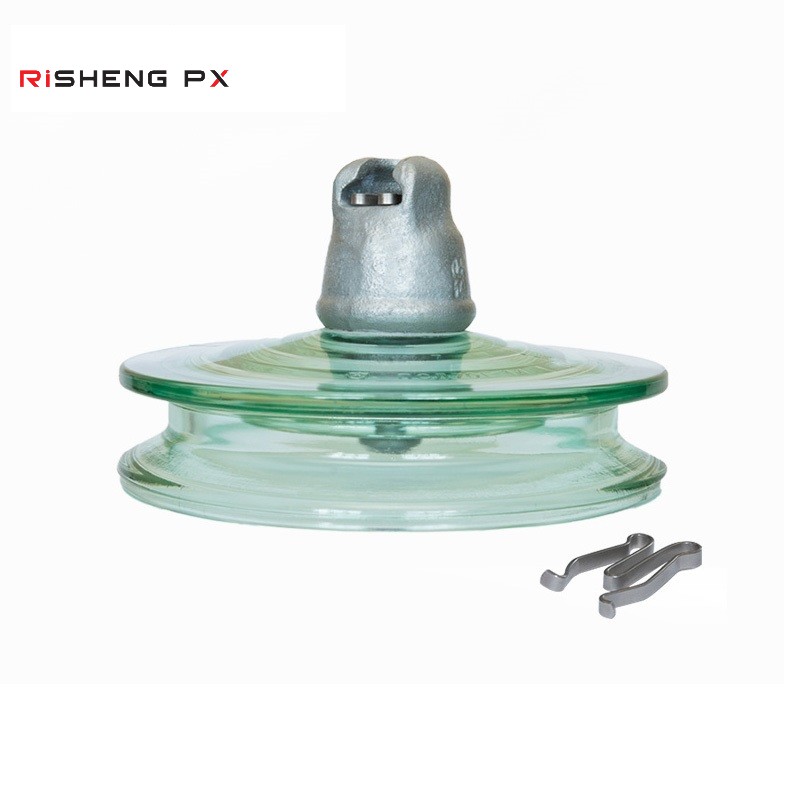

Anti fog Suspension Fiber Glass Insulator未标题-1.jpg

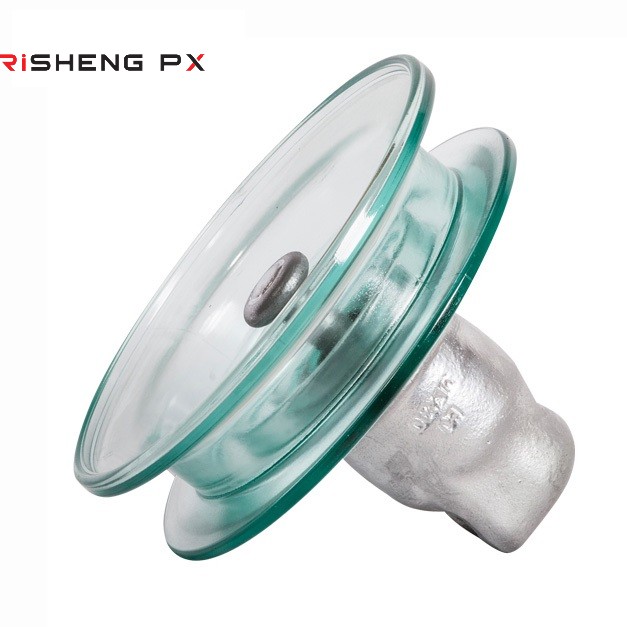

Double Shed Anti fog Suspension Fiber Glass Insulator

Place of Origin: Jiangxi, China

Brand: Rishenge PX

Model Number: Double Layer 70KN Glass Insulators

Material: Glass Material

Application: Power Transmission and Distribution Systems

Rated Voltage: High Voltage

Certification: ISO9001 and Type Test

    Contact us
    Product Details


    IEC designation U70BLP/146
    Diameter D mm 280
    Height H mm 146
    Creepage distance  mm 450
    Socket coupling mm 16
    Mechanical failing load kn 70
    Mechanical routine test kn 35
    Wet power frequency withstand voltage kv 40
    Dry lightning impulse withstand voltage kv 100
    Impulse puncture voltage P.U 2.8
    Power frequency puncture voltage kv 130
    Radio influence voltage μv 50
    Corona visual test kv 18/22
    Power frequency electric arc voltage ka 0.12s/20kA
    Net weight per unit kg 3.6
