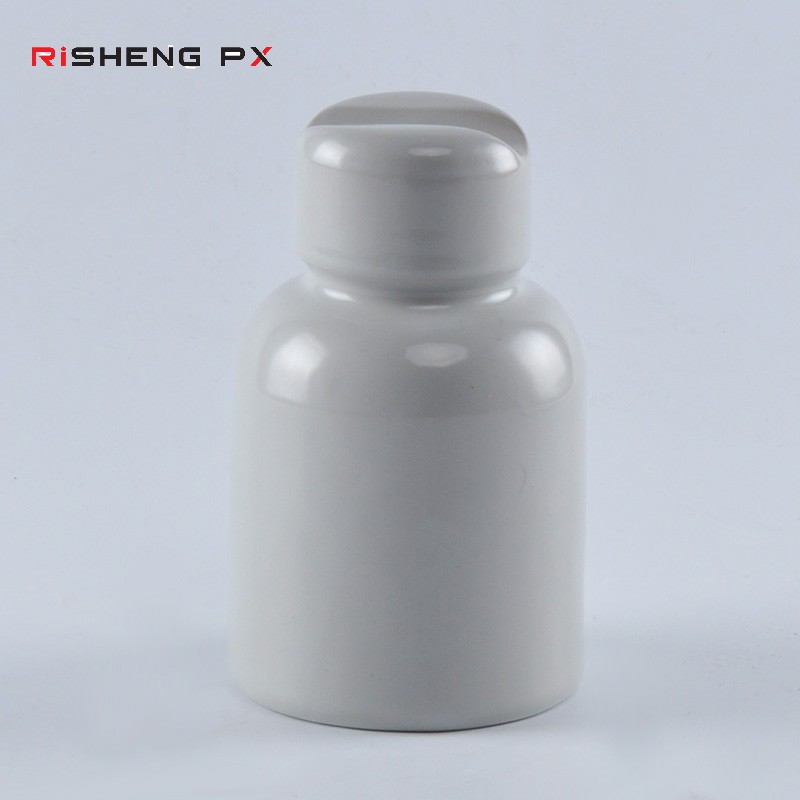

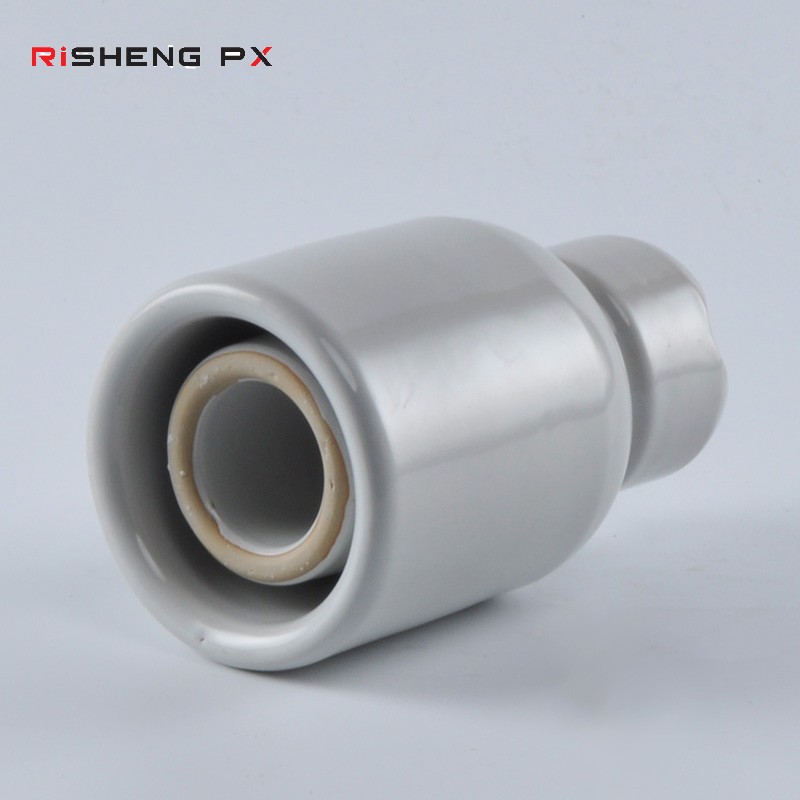

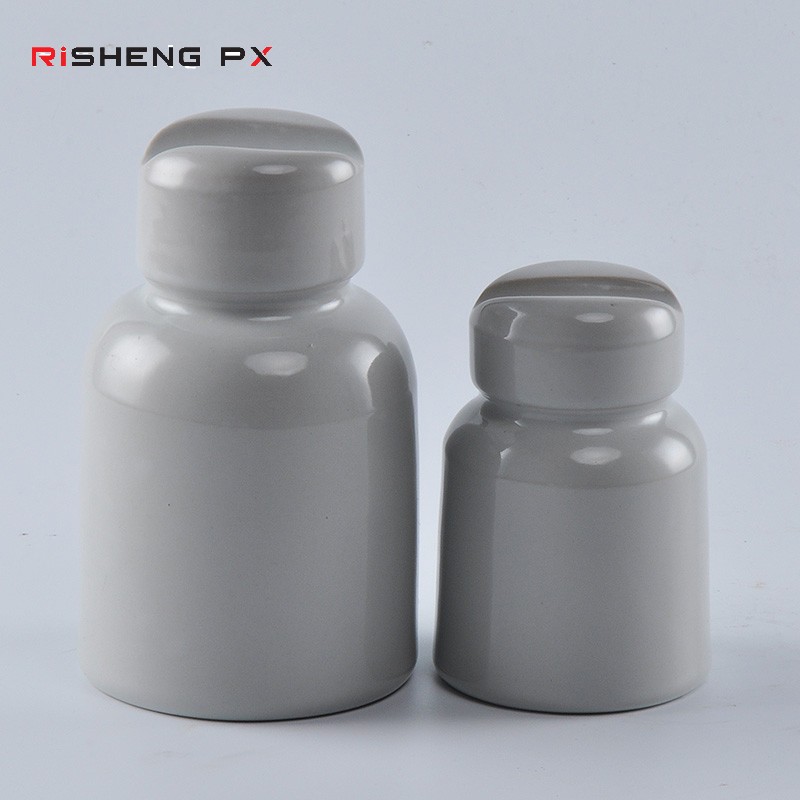

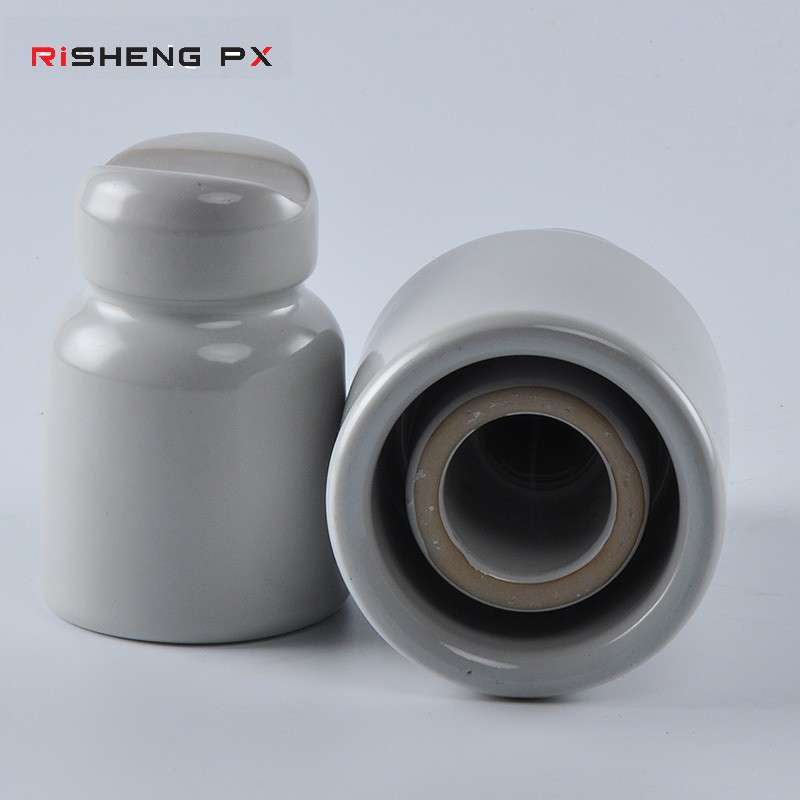

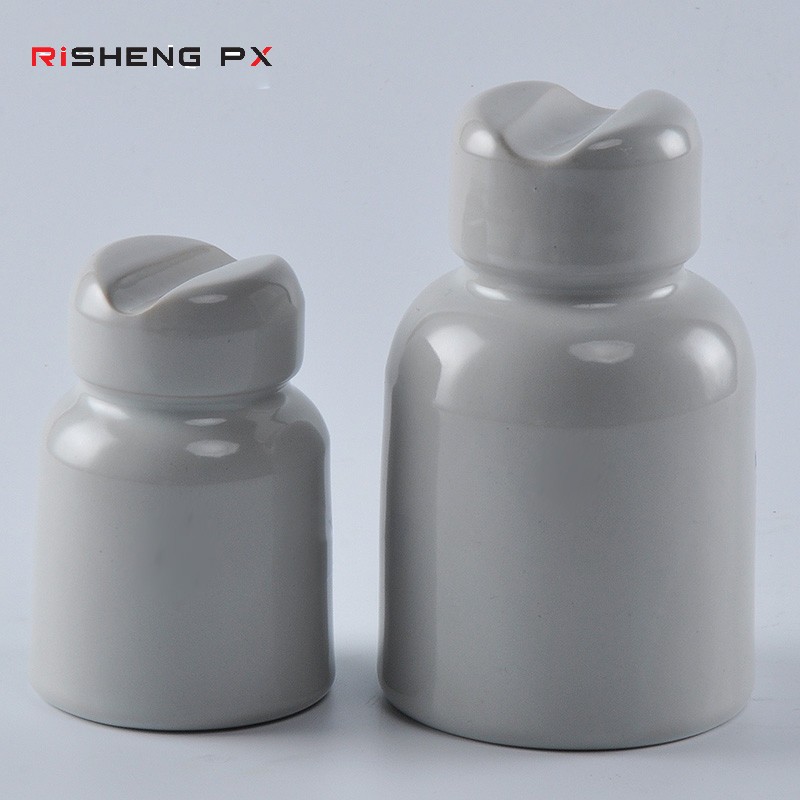

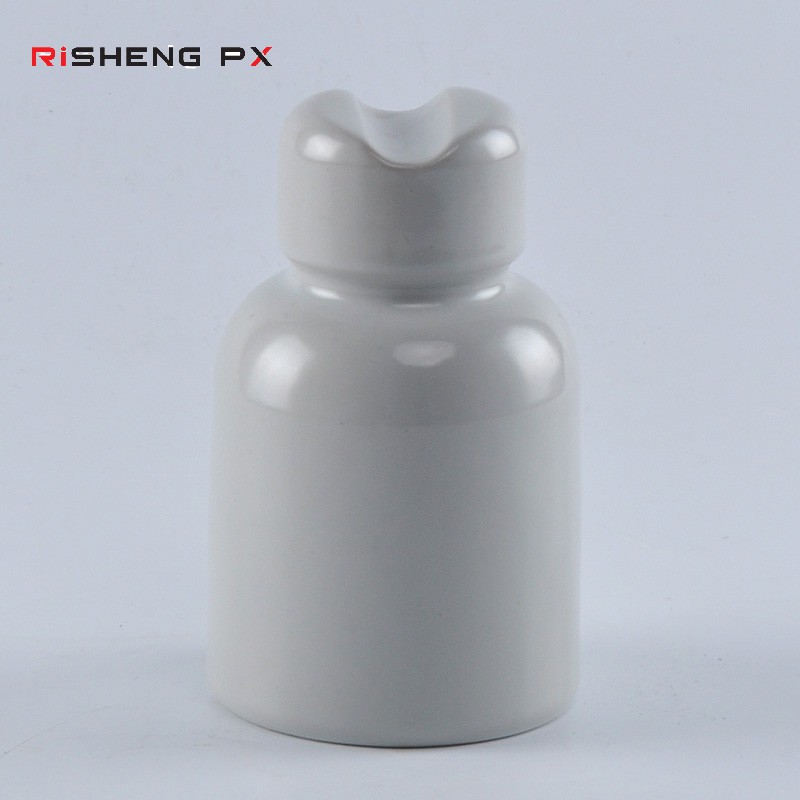

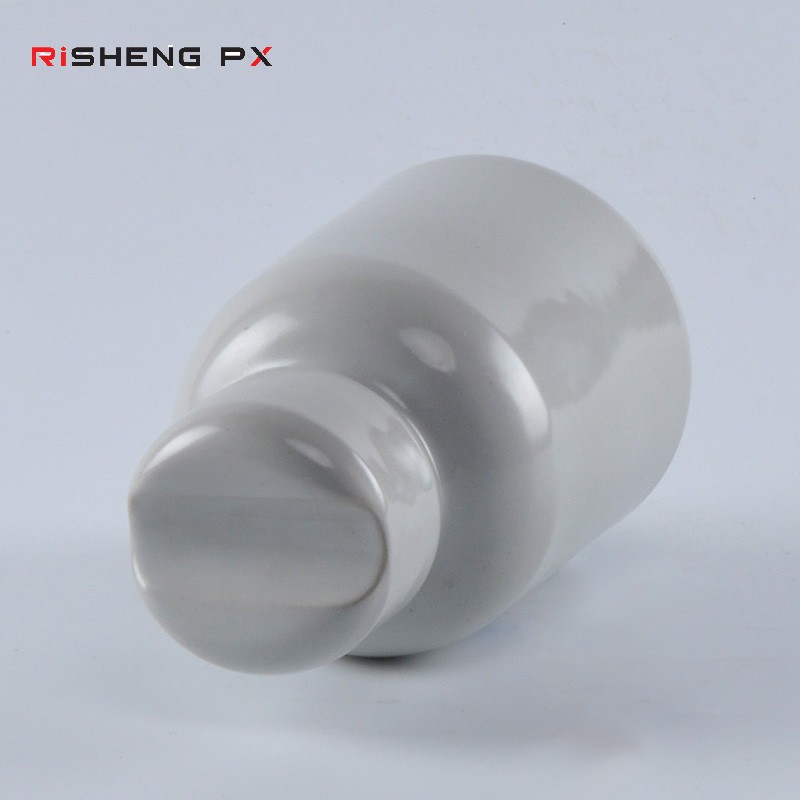

LV Power Line RM-1 Pin Type Telegraph Porcelain Ceramic Insulator

Brand: Risheng PX

Standard: IEC Standard

Origin: Pingxiang City, China

Weight: 1.1Kg

Application: Transmission Line

Product Name: RM-1 Pin Insulators

Material: Porcelain

Contact us

Product Details

Pin insulators
Model NO.		RM-1
Main dimension
H	mm	140
h	mm	49.5
D	mm	86
d	mm	51
d1	mm	23
R1	mm	12
R2	mm	4
Mechanical Values
Insulation resistance	M	50000
Packing and Shipping Data
Net weight,approximate	kg	1.1
