NLD Aluminum Bolt-Type Strain Clamp Power Transmission Line

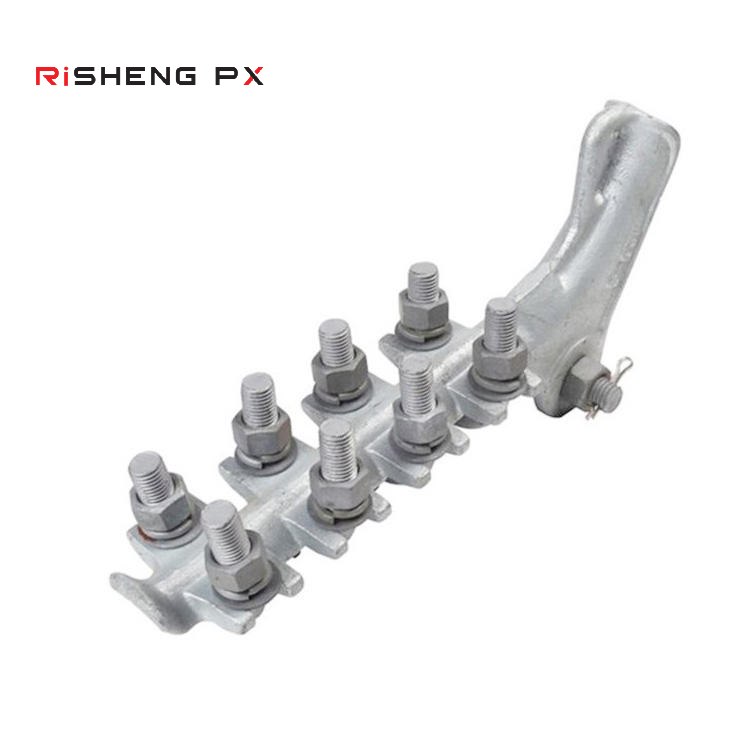

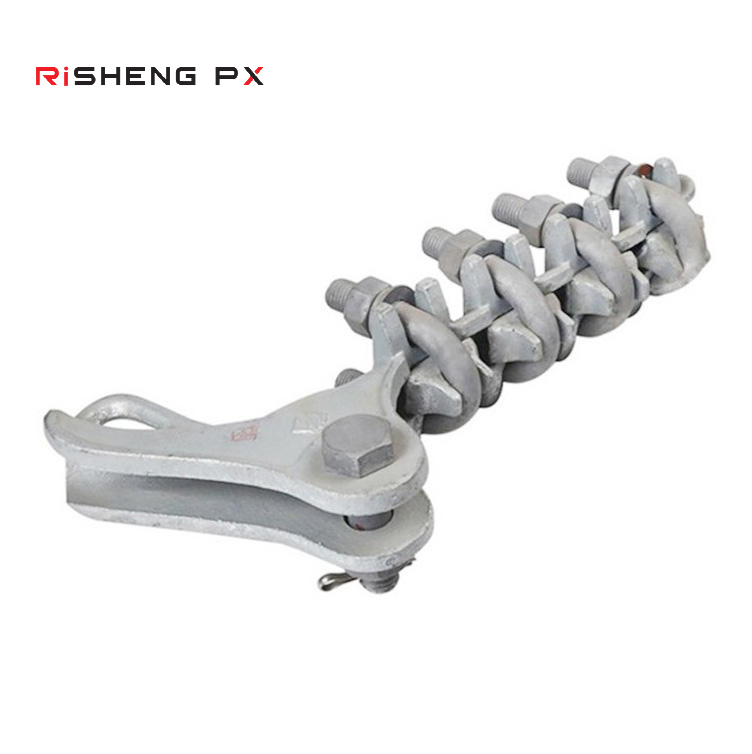

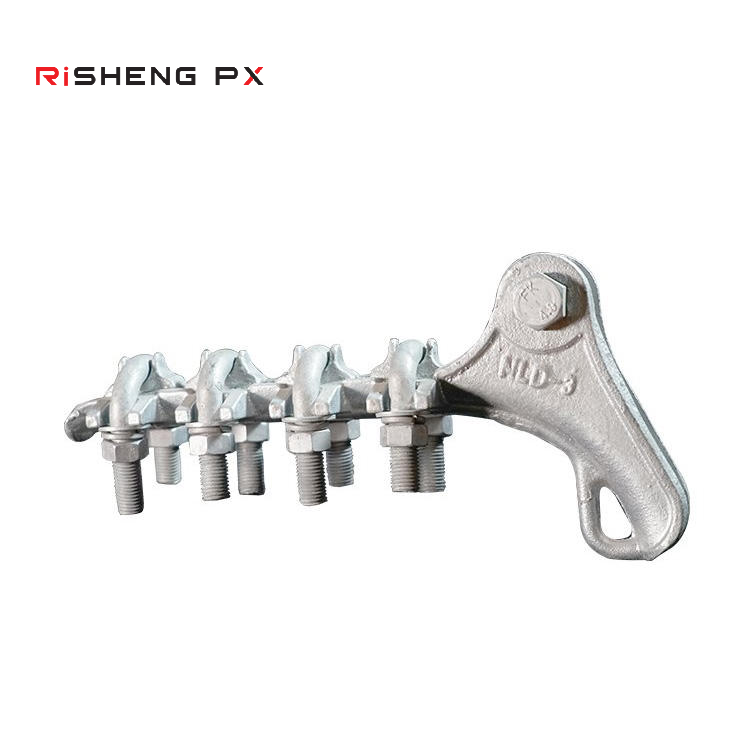

NLL/NLD Strain Clamp
Tension clamp refers to the hardware used to fix the conductor to bear the tension of the conductor and hang the conductor to the tension string or tower NLL/NLD Strain Clamp Material: Body: NLL are made of aluminum NLD are made of hot dip galvanized steel U bolt / bolt: Hot dip galvanized steel R Pin: Stainless Steel
| Type | U bolt | Applicable conductor diameter(mm’) |
|
|---|---|---|---|
| Qty | Diameter | ||
| NLL-1 | 2 | M12 | 5.0-15.5 |
| NLL-2 | 2 | M12 | 8.2-17.0 |
| NLL-3 | 3 | M14 | 11.4-20.0 |
| NLL-4 | 4 | M16 | 13.6-25.0 |

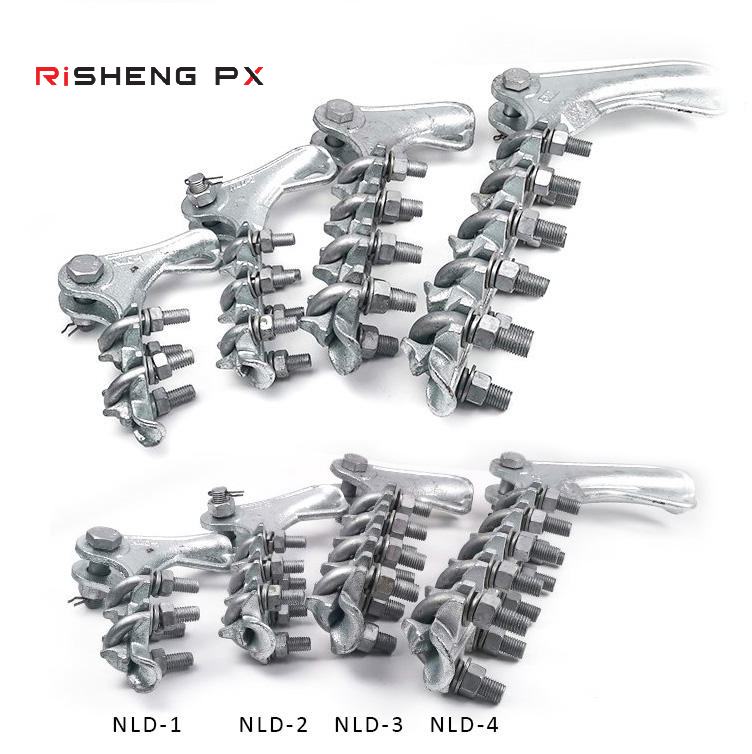

| NLD-1 | 2 | M12 | 5.0-10.0 |
| NLD-2 | 3 | M12 | 10.0-14.0 |
| NLD-3 | 4 | M16 | 14.0-18.0 |
| NLD-4 | 4 | M16 | 18.1-23.0 |
