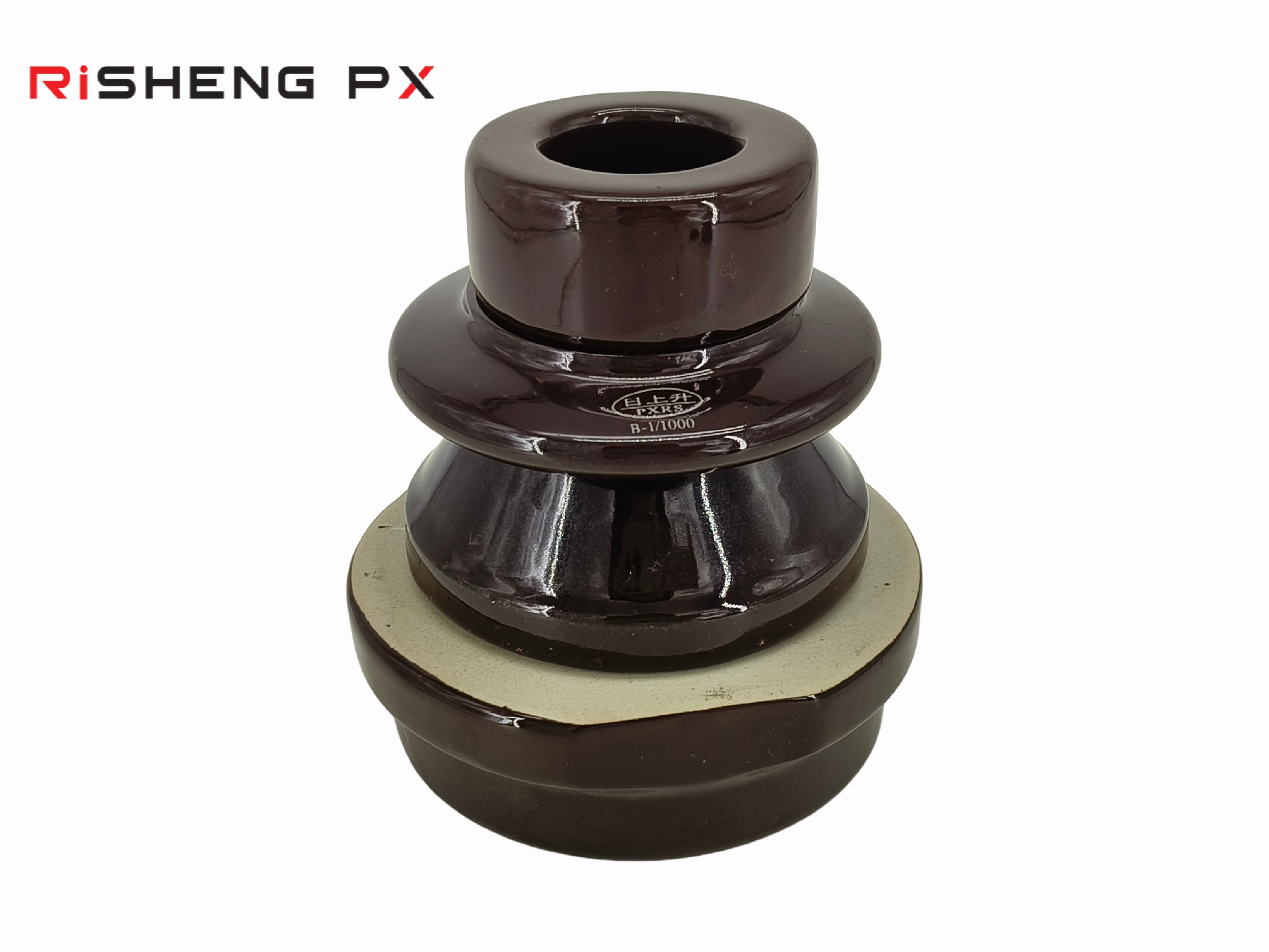

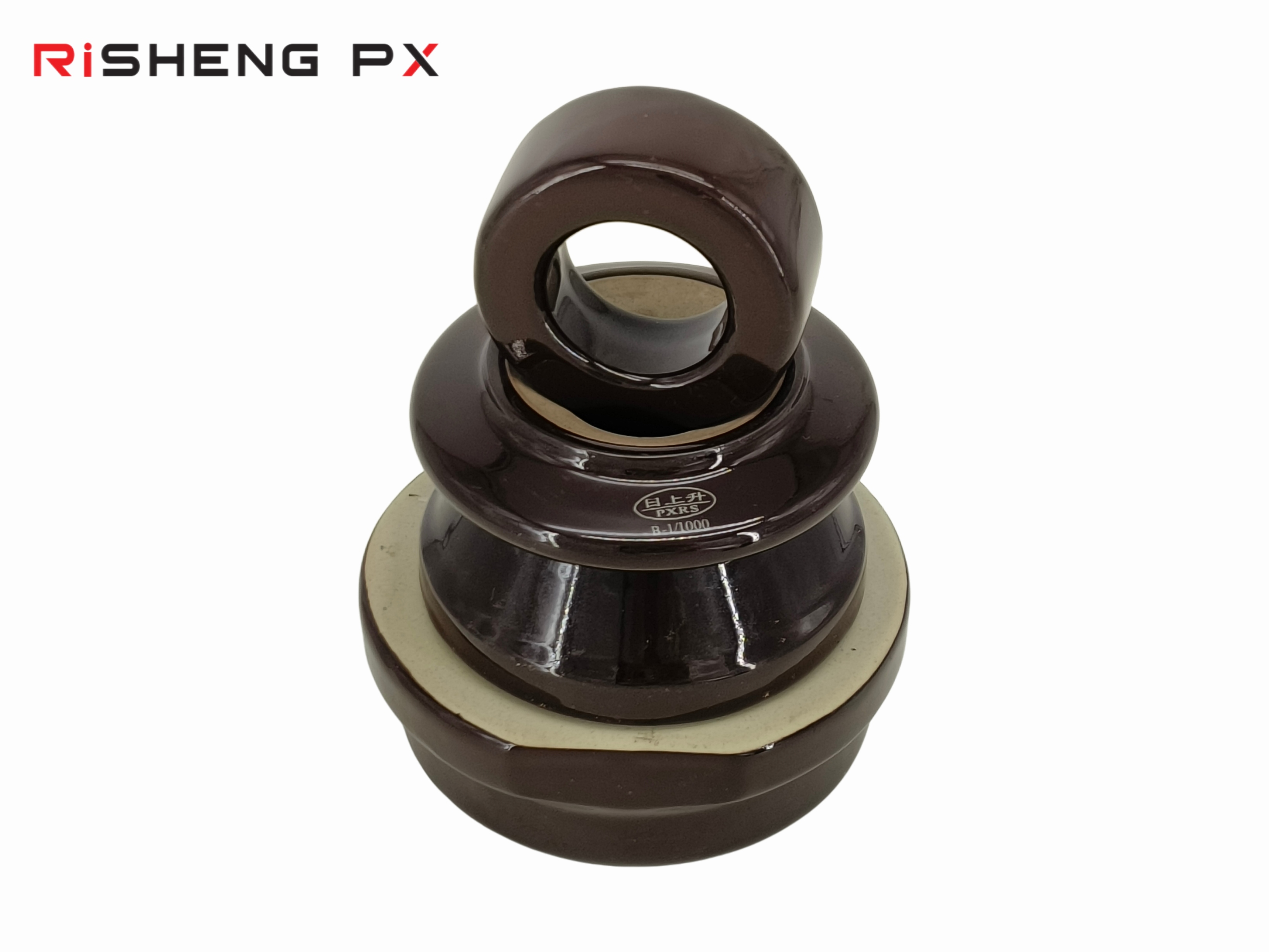

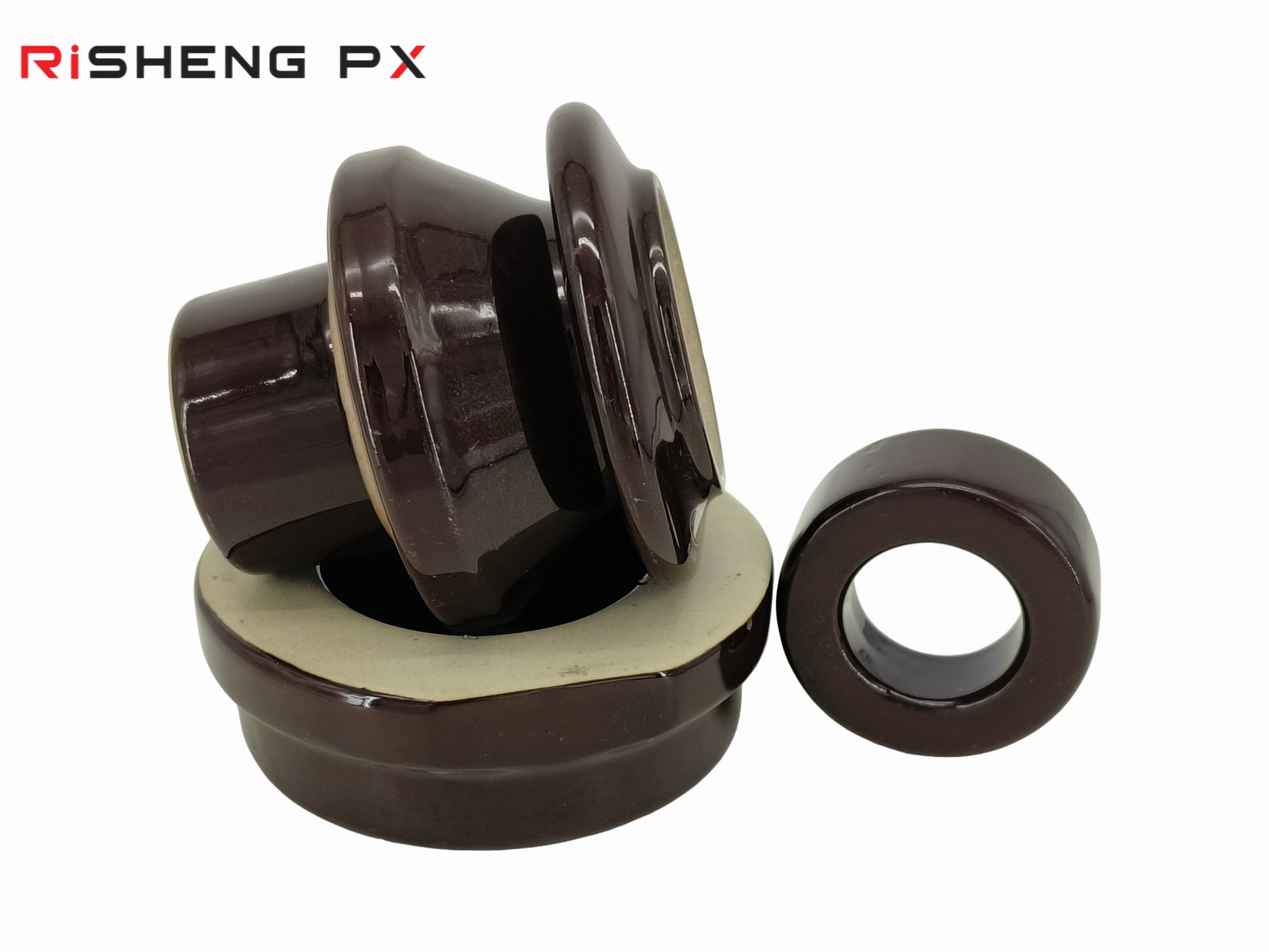

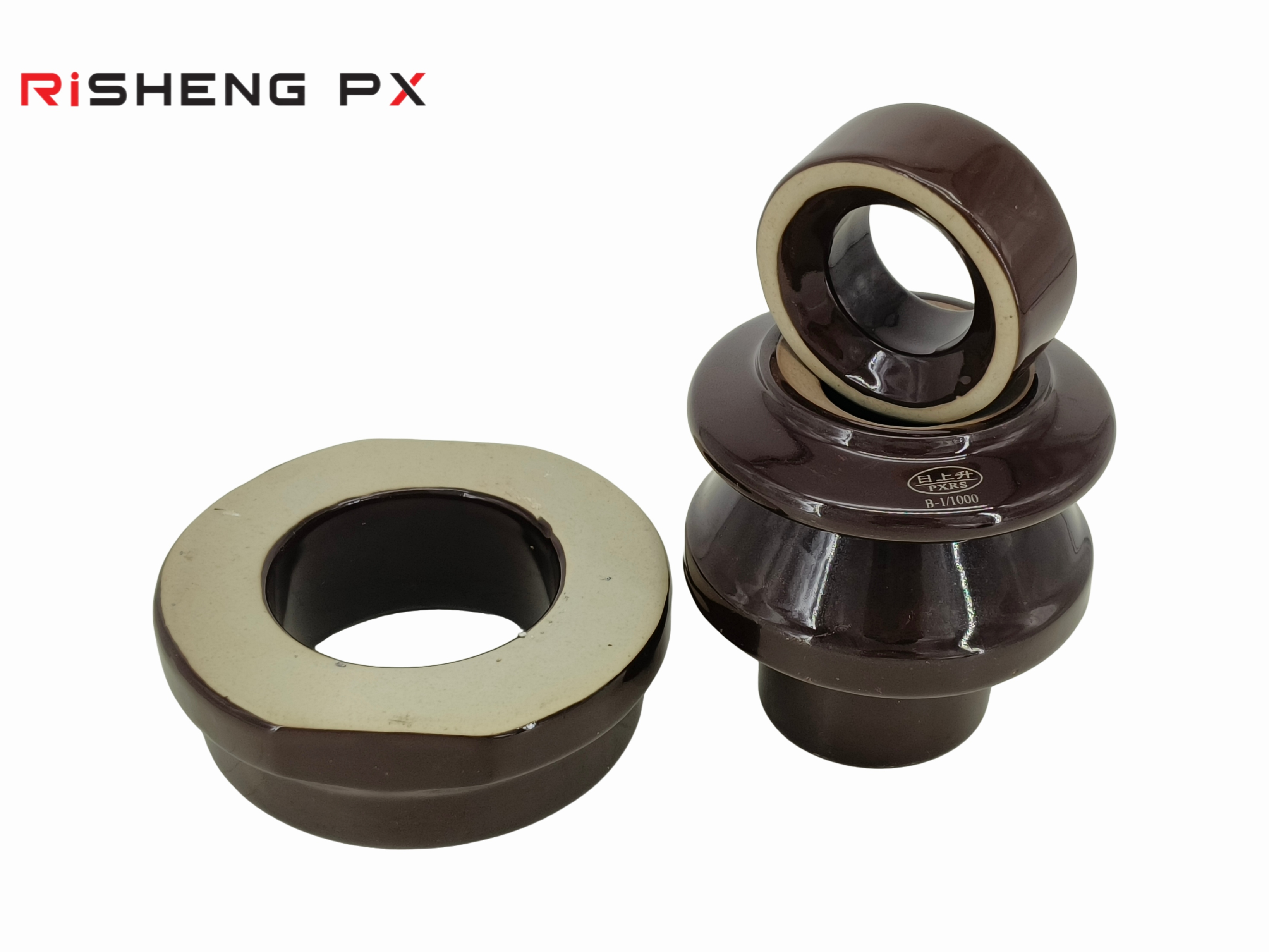

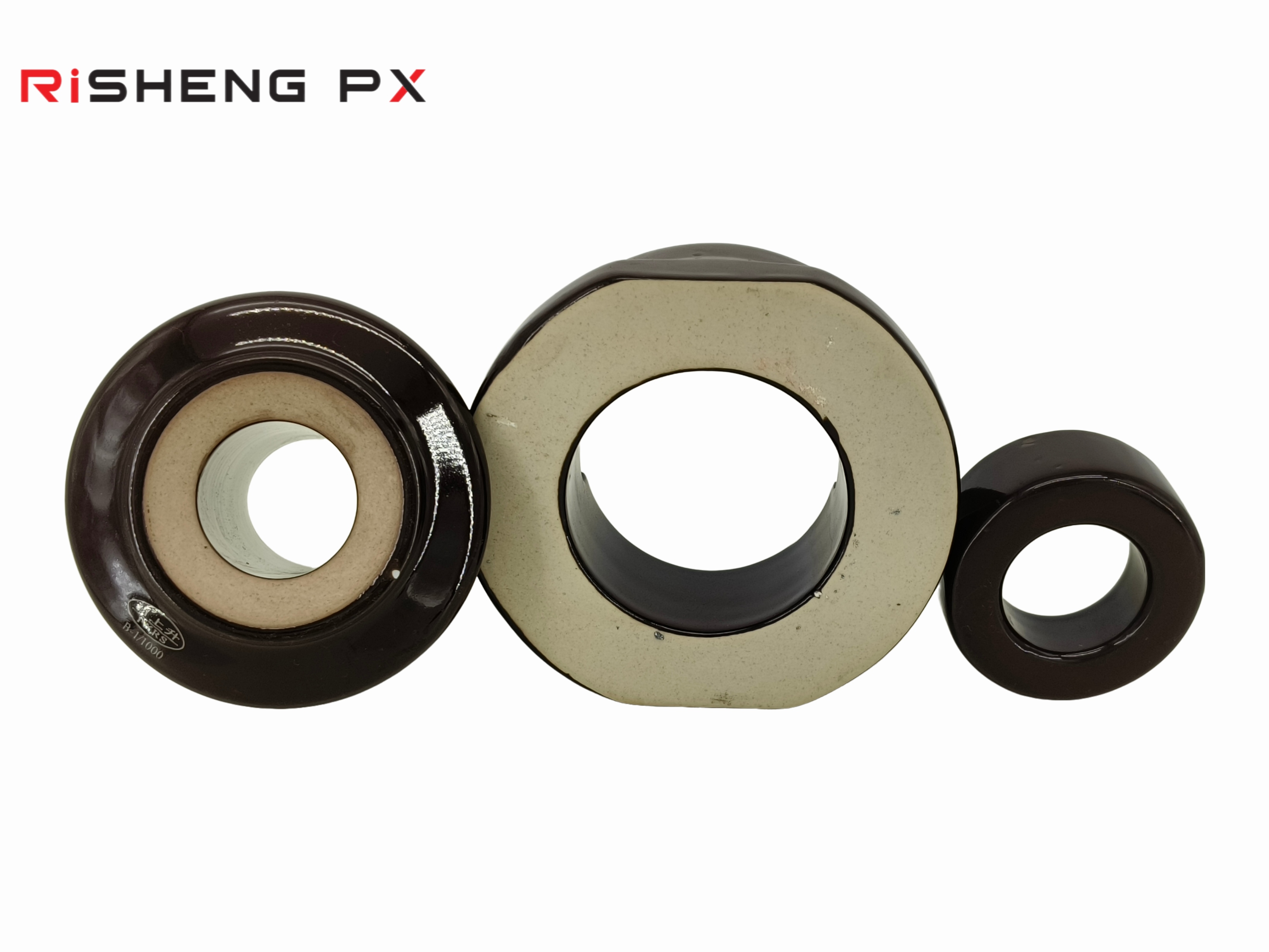

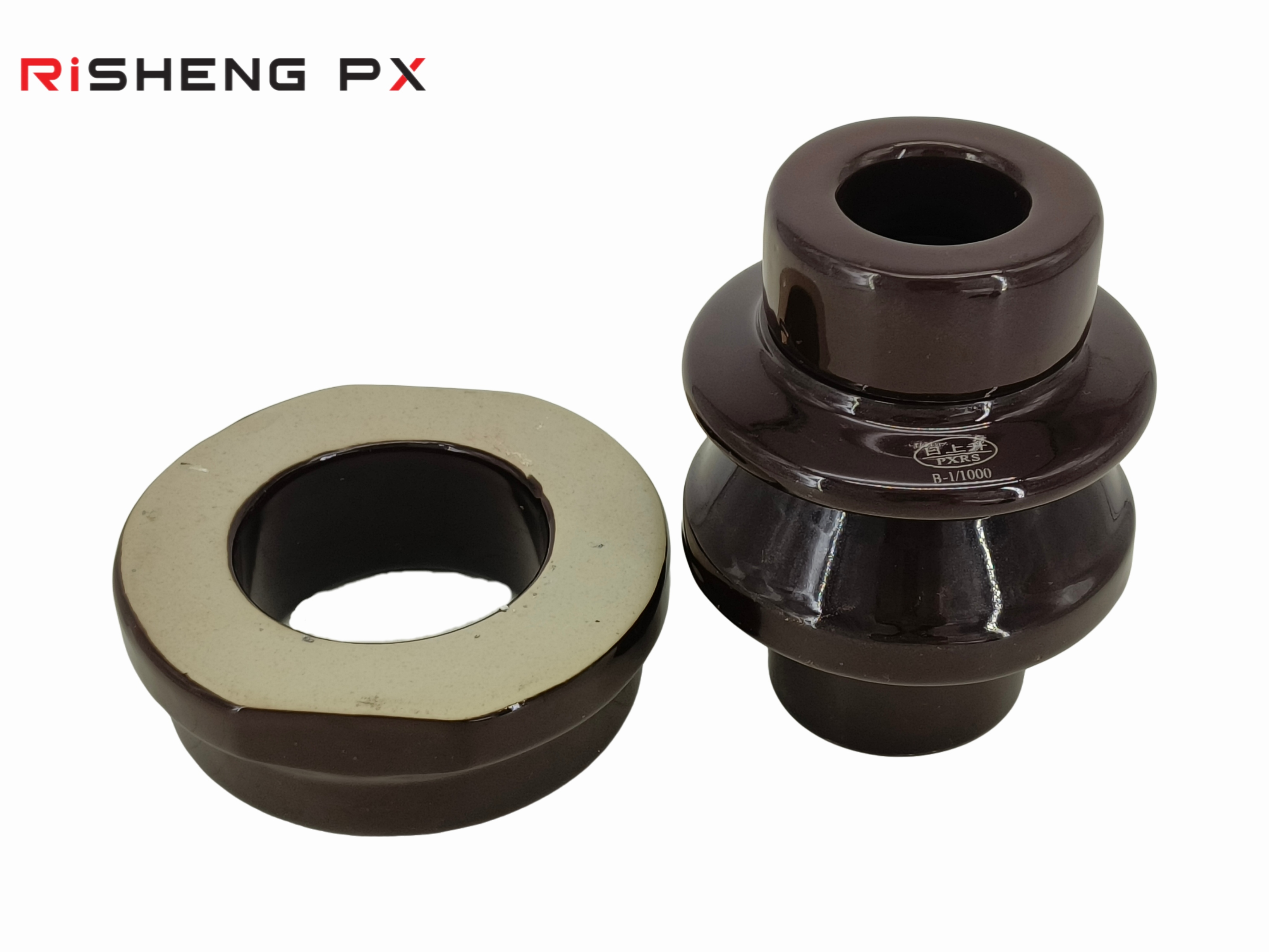

B-1/1000 Transformer Bushing Insulator is an electrical component suitable for low - voltage power systems.
Rated Voltage: 1KV
Rated Current: 1000A
Creepage Distance: Min 75mm
Low - voltage power transformer insulators like B - 1/1000 are crucial in the power system. To ensure the power system operates normally, we must attach sufficient importance to such insulators, choose proper materials and types, and conduct regular maintenance and testing. Only in this way can they fully exert their role and strongly guarantee the development of electric power.
Safety guarantee: The good performance of B - 1/1000 can ensure the normal operation of the transformer and prevent safety accidents caused by winding short circuits and leakage.
Stability guarantee: The quality of B - 1/1000 directly affects the stability and service life of the transformer. High - quality B - 1/1000 insulators can ensure the transformer operates reliably for a long time and reduce the failure rate.
Mainly for low-voltage (up to 1KV) scenarios like insulating conductive rods on oil-immersed transformer low-voltage sides.
Installed by fitting onto the corresponding conductive rods or connecting components within the transformer, ensuring a stable connection.
-
Insulation: To electrically isolate the energized conductor from other parts of the transformer, preventing current leakage and short circuits.
-
Support: To physically hold the conductor in the proper position within the transformer.
