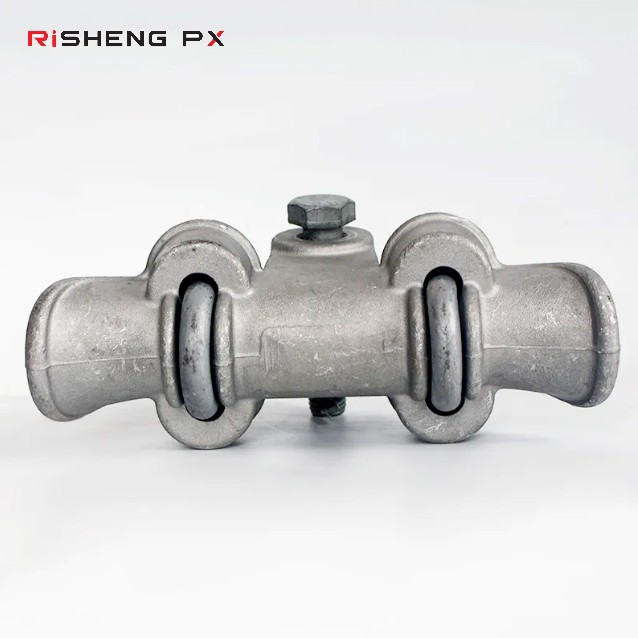

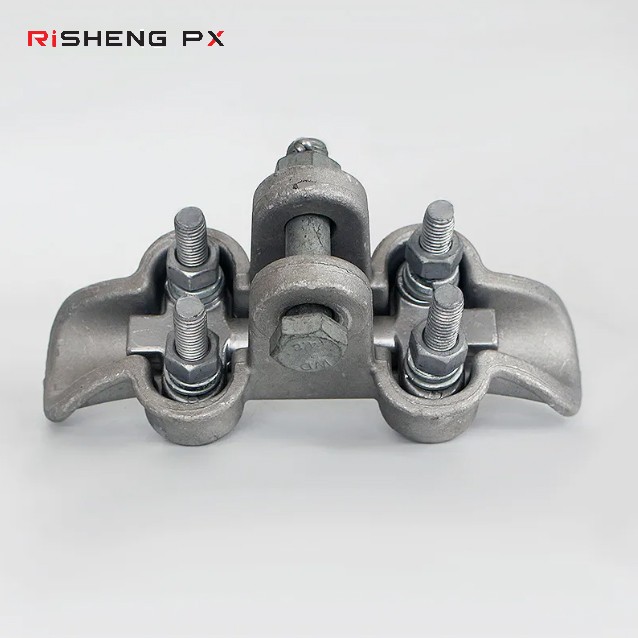

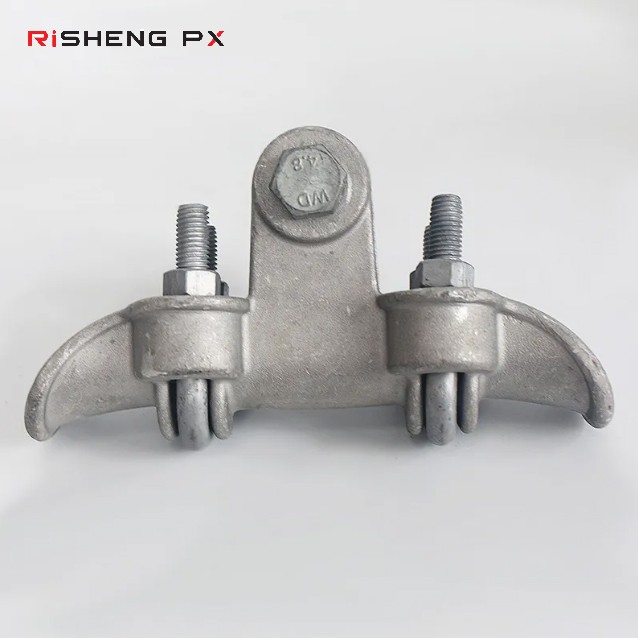

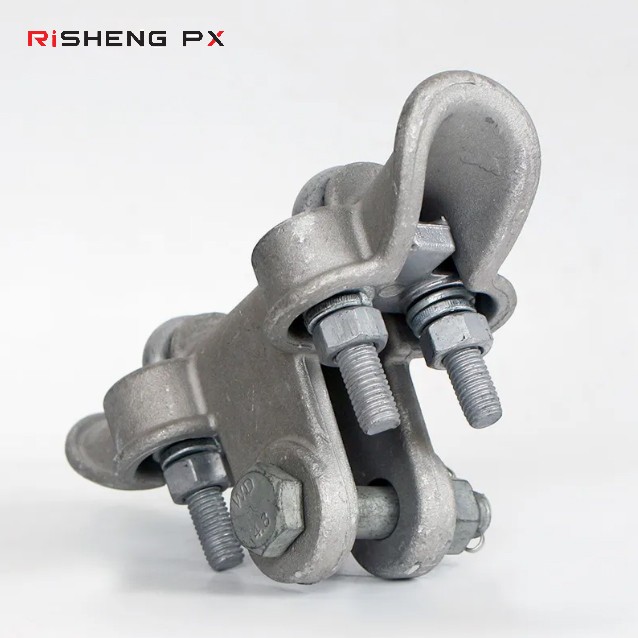

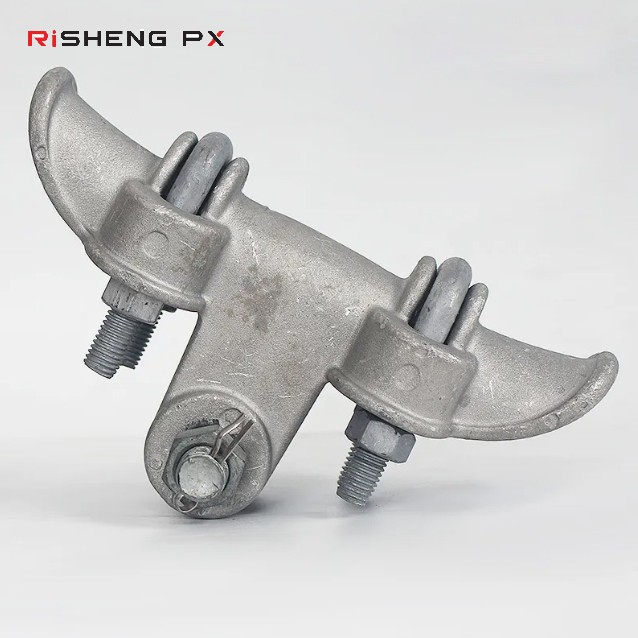

CGU Suspension Clamps High-Performance 33kv Suspension Clamp
Product Introduction:
CGU Suspension Clamps are designed for the secure and reliable suspension of conductors and lightning wires in overhead power lines and substations. Crafted from a combination of materials, these clamps provide a lightweight yet durable solution for supporting electrical infrastructure.
Product Details:
- Body & Keeper: Made from aluminum, offering a lightweight solution with excellent corrosion resistance.
- U Bolt / Bolt: Constructed from hot-dip galvanized steel for enhanced strength and rust protection.
- R Pin: Made from stainless steel, ensuring long-lasting performance and high corrosion resistance.
Structural Features:
- Lightweight Aluminum Body: The clamp body and keeper are made from aluminum, offering a lightweight yet durable structure.
- Galvanized Steel U Bolt/Bolt: Hot dip galvanized for superior strength and corrosion resistance, ensuring a secure fastening point.
- Stainless Steel R Pin: Adds longevity and corrosion resistance to the clamp assembly, contributing to the overall durability of the clamp.
Installation Process:
- Assembly Preparation: Prepare the suspension clamp components, including the body, keeper, U-bolts/bolts, and R pin.
- Conductor Placement: Position the conductor or lightning wire into the clamp body, ensuring correct alignment for secure suspension.
- Keeper Securement: Slide the keeper over the conductor and secure it in place using the U-bolts/bolts, applying even pressure for a firm grip.
- R Pin Locking: Utilize the stainless steel R pin to lock the keeper, preventing any conductor movement and ensuring a stable suspension.
Applicable Environmental Conditions:
- Wide Temperature Range: Capable of operating in a broad temperature range, typically from -50°C to +80°C, suitable for diverse climates.
- UV and Weather Resistance: The aluminum body and galvanized steel components are resistant to UV radiation and weather effects, maintaining performance outdoors.
- Chemical Resistance: The materials used are resistant to common environmental chemicals, preserving the clamp’s integrity in chemically active or polluted areas.
- Humidity Tolerance: Designed to perform well in high humidity environments, ensuring reliable operation in damp conditions.
Specifications
| Type |
Applicable conductor diameter(mm) |
Failure Load( KN) |
|---|---|---|
| CGU-2 | 7.0-12.4 | 40 |
| CGU-3 | 12.4-17.0 | 40 |
| CGU-4 | 19.0-21.5 | 40 |
| CGU-5 | 24.2-33.0 | 70 |
Applications of CGU Suspension Clamps
-
Overhead Power Lines:
- Conductor Suspension: CGU Suspension Clamps are used to suspend conductors from insulator strings in overhead power lines. They maintain proper alignment and tension, ensuring efficient and reliable power transmission.
-
Substations:
- Conductor and Lightning Wire Support: In substations, CGU Suspension Clamps are employed to support conductors and lightning wires, securing them to various structural components and maintaining stable connections within the power distribution network.
-
Lightning Wire Attachment:
- Tower Mounting: These clamps are used to attach lightning wires to towers, providing essential support and ensuring proper grounding and protection of the power system.
