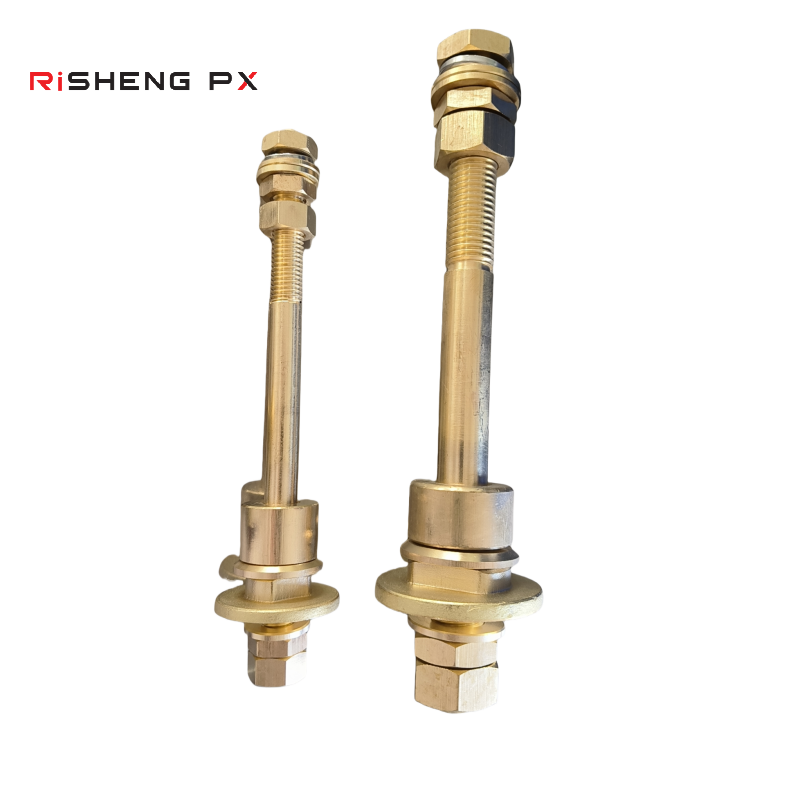

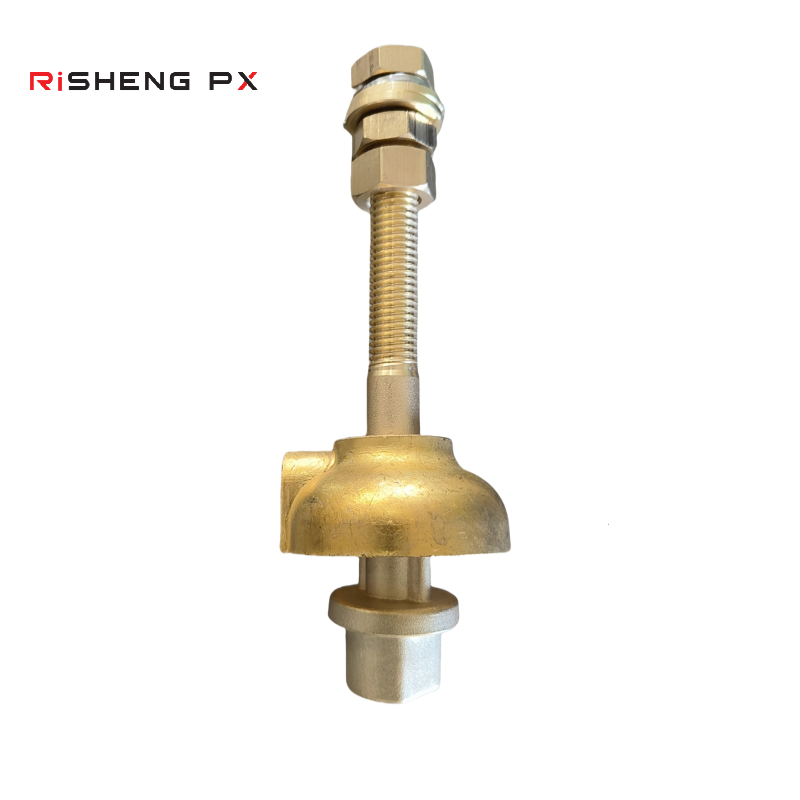

Copper Transformer Bushing Accessories Low Voltage and High Voltage

Origin: Jiangxi, China

Brand: Risheng PX

Model Number: Copper Transformer Bushing Accessories

Material: Insulation Material

Application: High Voltage Transmission Line

Rated Voltage: Low Voltage and High Voltage

Certification: ISO9001

Standard: DIN

Product Details

Bushings are manufactured to DIN 42530,42539,42531,42532,42533,42534
PART NUMBER	DESCRIPTION	Voltage RATING(KV)	I RATING(A)	TANK HOLESIZE mm	BIL(KV)	PF DRY	PF WET	CREEPAGE	STEM CONNECTOR
DT 1/250	DIN 42530 1/250	1KV	250	-	-	-	-	60	M12
DT 1/630	DIN 42530 1/630	1KV	630	45	-	-	-	75	M20
DT 1/1000	DIN 42530 1/1000	1KV	1000	56	-	-	-	75	M30
DT 1/2000	DIN 42530 1/2000	1KV	2000	70	-	-	-	75	M42
DT 1/3150	DIN 42530 1/3150	1KV	3150	90	-	-	-	75	M48
DT 3/250	DIN 42539 3/250	3KV	250	39	40	14	10	120	M12
DT 3/630	DIN 42539 3/630	3KV	630	45	40	14	10	120	M20
DT 3/1000	DIN 42539 3/1000	3KV	1000	56	40	14	10	125	M30
DT 3/2000	DIN 42539 3/2000	3KV	2000	70	40	14	10	125	M42
DT 3/3150	DIN 42539 3/3150	3KV	3150	90	40	14	10	125	M48
DT 3/4500	DIN 42539 3/4500	3KV	4500	119	40	14	10	130	M55
DT 3/6500	DIN 42539 3/6500	3KV	6500	119	40	14	10	130	M75
10NF250	DIN 42531 10NF250	12KV	250	78	75	28	-	305	M12
10NF630	DIN 42532 10NF630	12KV	630	90	75	28	-	305	M20
10NF1000	DIN 42533 10NF1000	12KV	1000	110	75	28	-	295	M30
10NF2000	DIN 42533 10NF2000	12KV	2000	135	75	28	-	295	M42
10NF3150	DIN 42533 10NF3150	12KV	3150	135	75	28	-	295	M48
20NF250	DIN 42531 20NF250	24KV	250	78	125	50	-	450	M12
20NF630	DIN 42532 20NF630	24KV	630	90	125	50	-	440	M20
20NF1000	DIN 42533 20NF1000	24KV	1000	110	125	50	-	445	M30
20NF2000	DIN 42533 20NF2000	24KV	2000	135	125	50	-	445	M42
20NF3150	DIN 42533 20NF3150	24KV	3150	135	125	50	-	445	M48
30NF250	DIN 42531 30NF250	36KV	250	78	170	70	-	607	M12
30NF630	DIN 42532 30NF630	36KV	630	90	170	70	-	662	M20
30NF1000	DIN 42533 30NF1000	36KV	1000	110	170	70	-	635	M30
30NF2000	DIN 42533 30NF2000	36KV	2000	135	170	70	-	635	M42
30NF3150	DIN 42533 30NF3150	36KV	3150	135	170	70	-	635	M48
