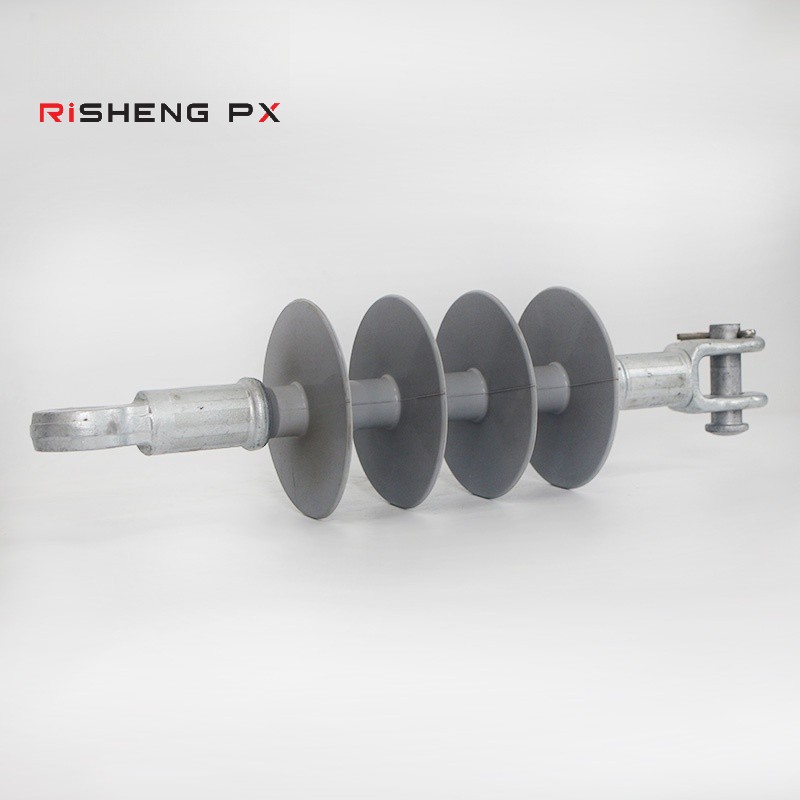

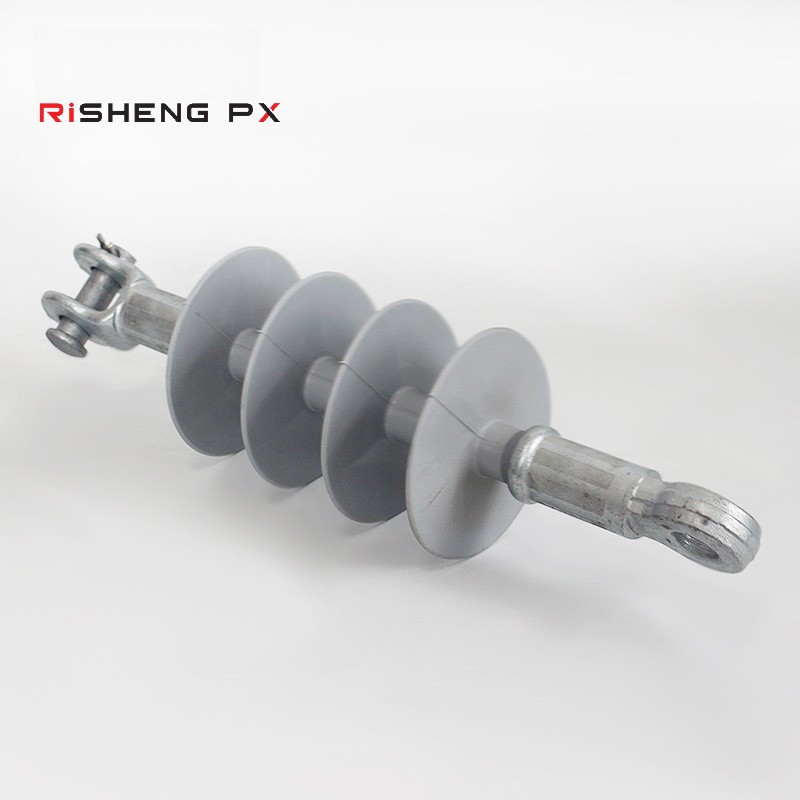

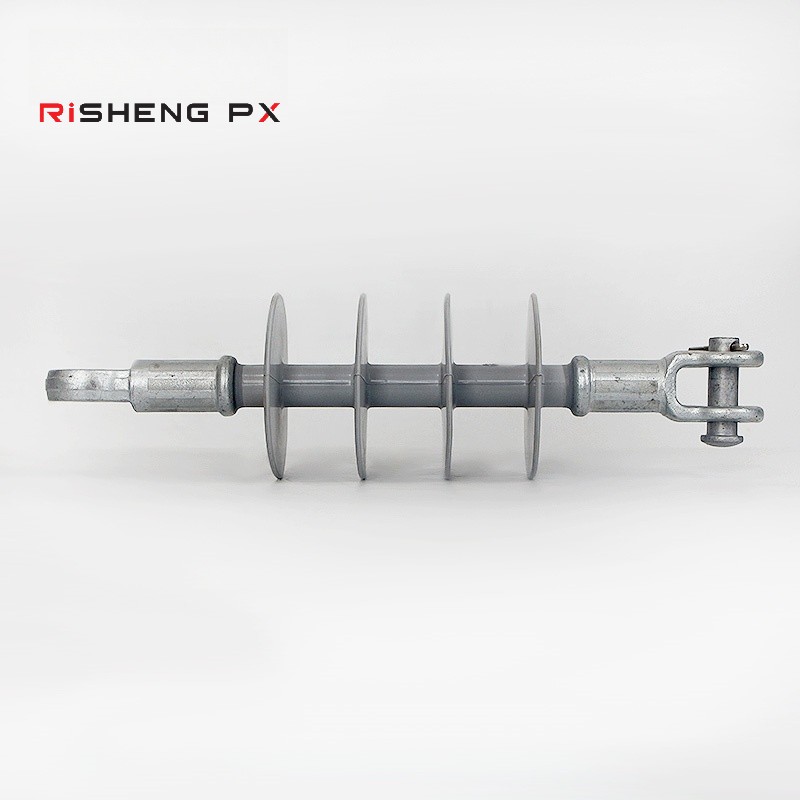

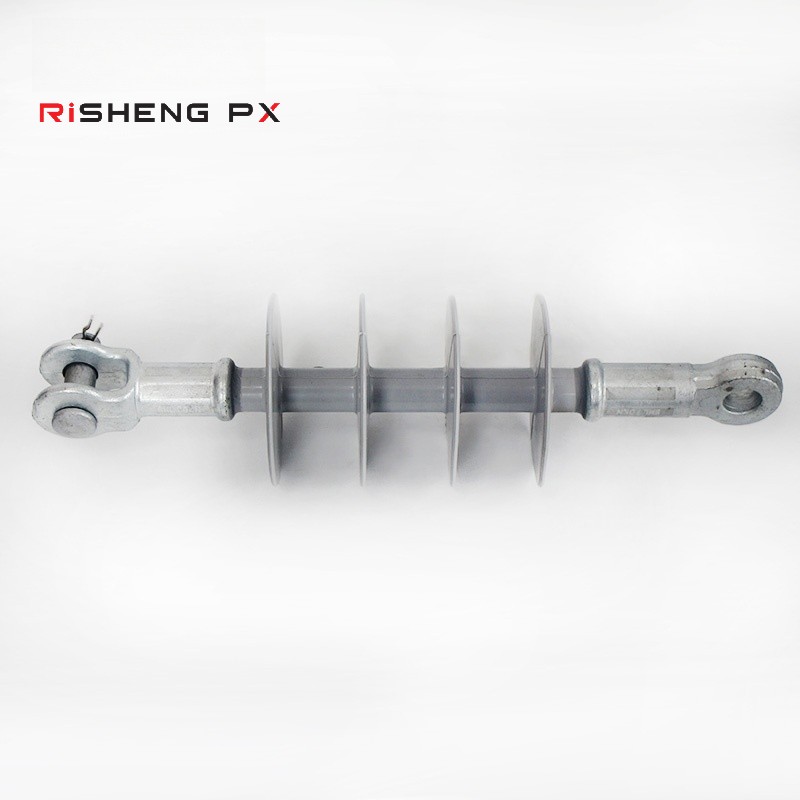

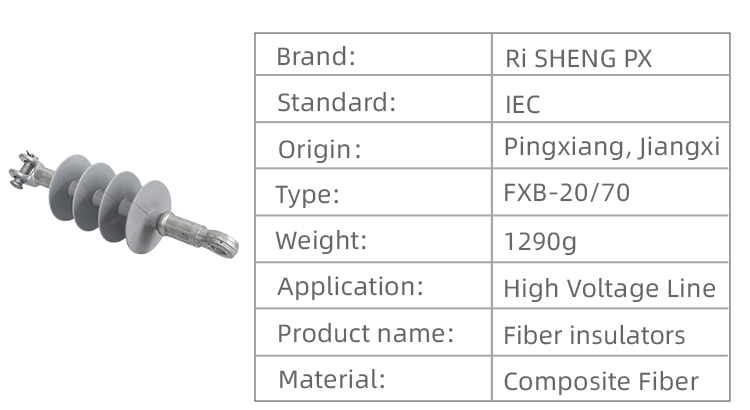

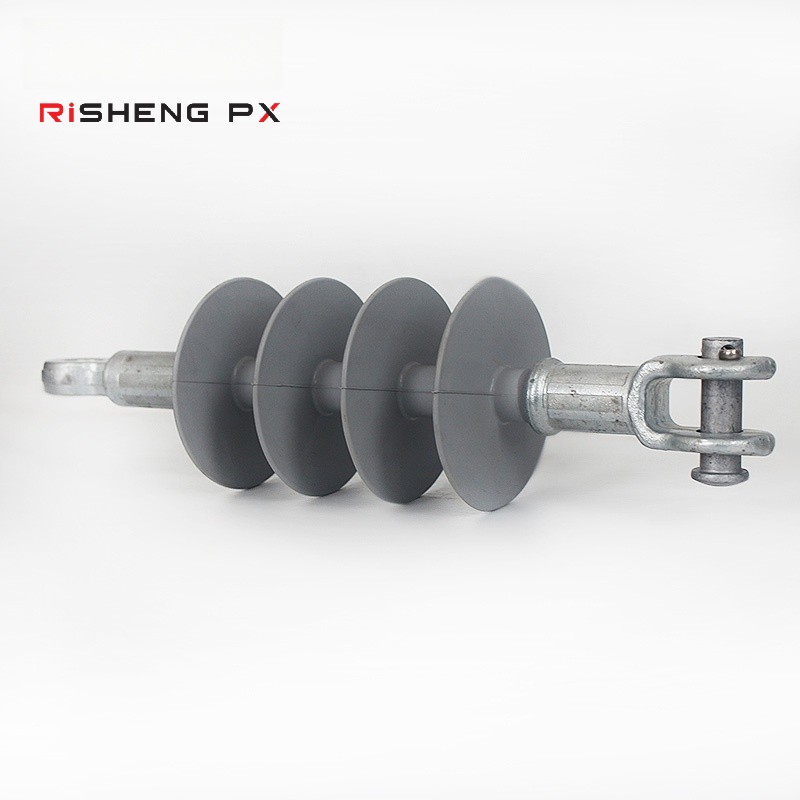

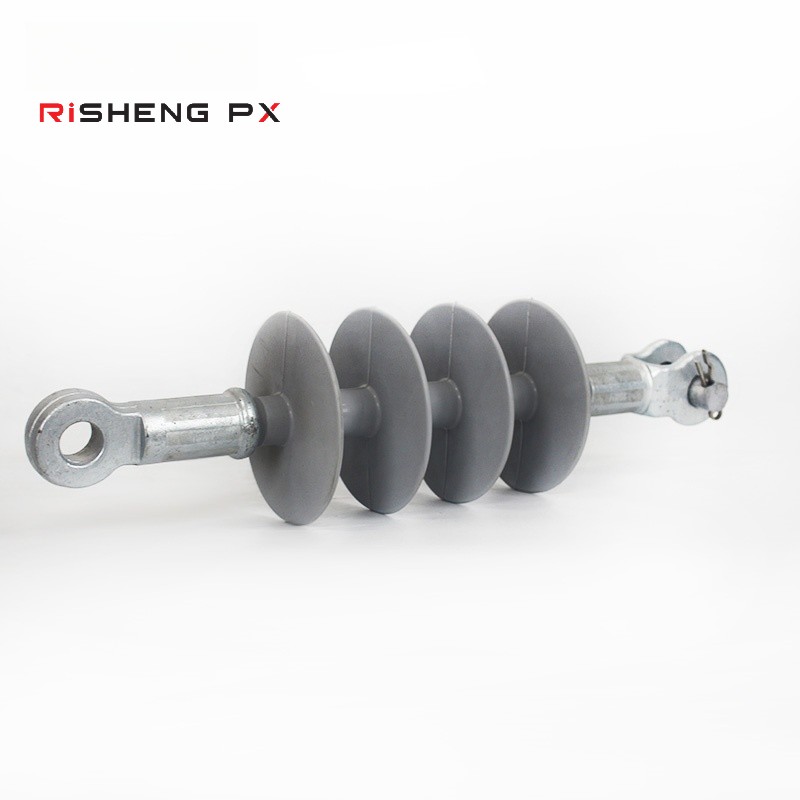

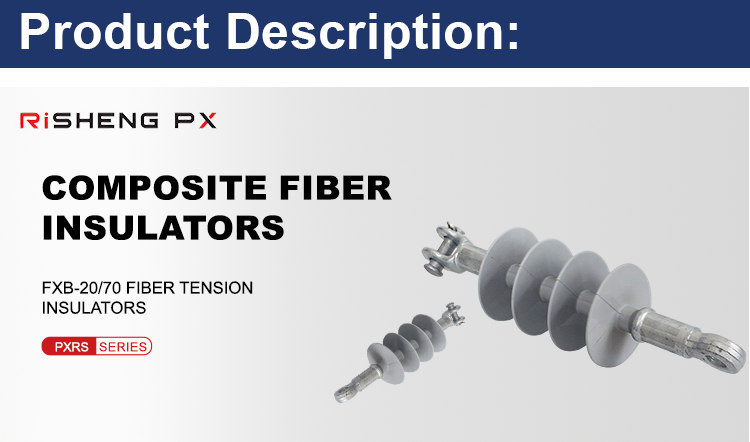

FXB-20/70 CT Composite Fiber Suspension/Tension Insulators 70KN

Composite Suspension Insulators, also known as composite long rod insulators, composite tension insulators,

polymer suspension insulators, and silicone rubber suspension insulators, are a primary type of composite

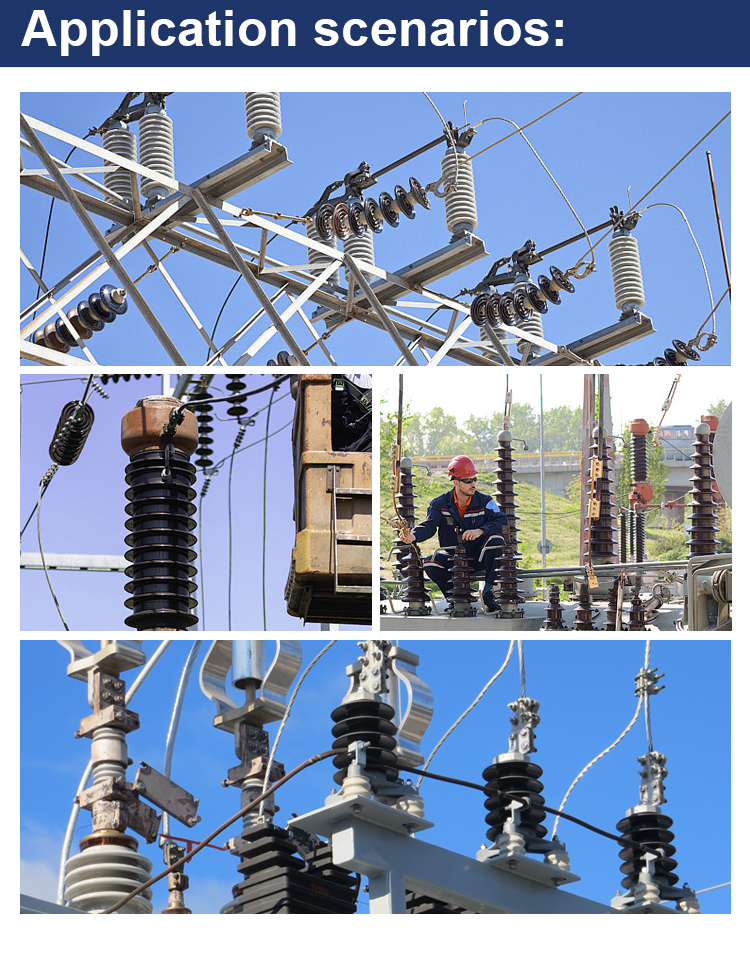

insulator used in power transmission and distribution systems. These insulators are suitable for applications

ranging from 11kV to 1100kV, making them ideal for both transmission and distribution lines.

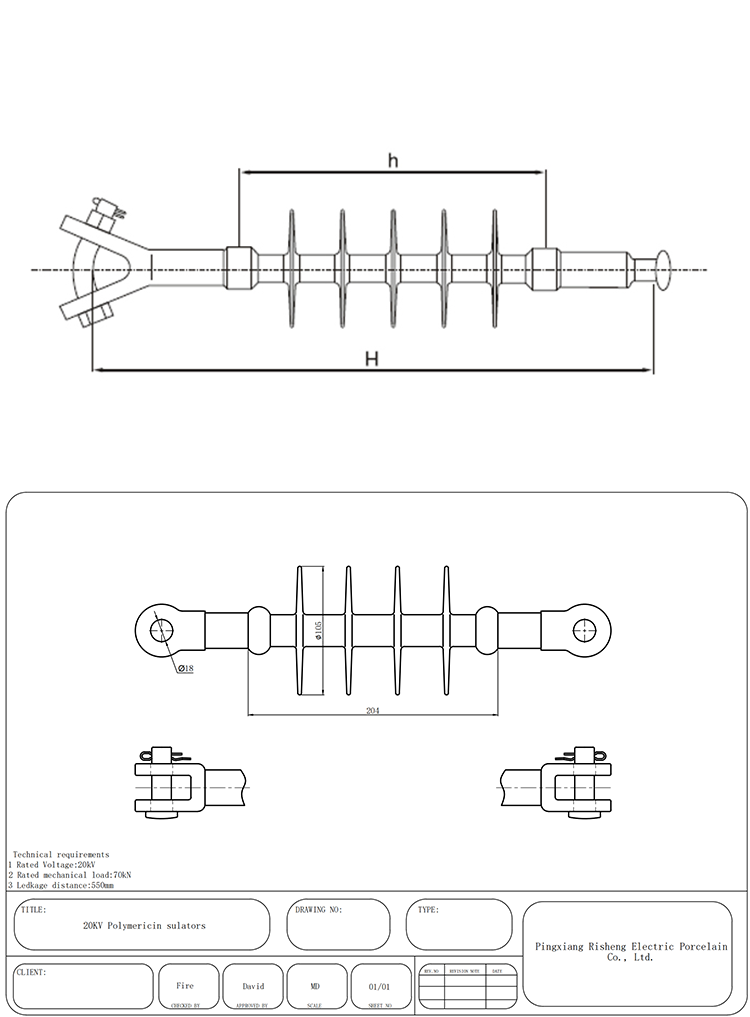

Rated voltage: 20KV

Mechanical load: 70KN

Height: 380mm

Dry arcing distance: 195mm

Creepage distance: 550mm

Power frequency wet withstand voltage: 65KV

Dry lightning impulse withstand voltage: 140KV
