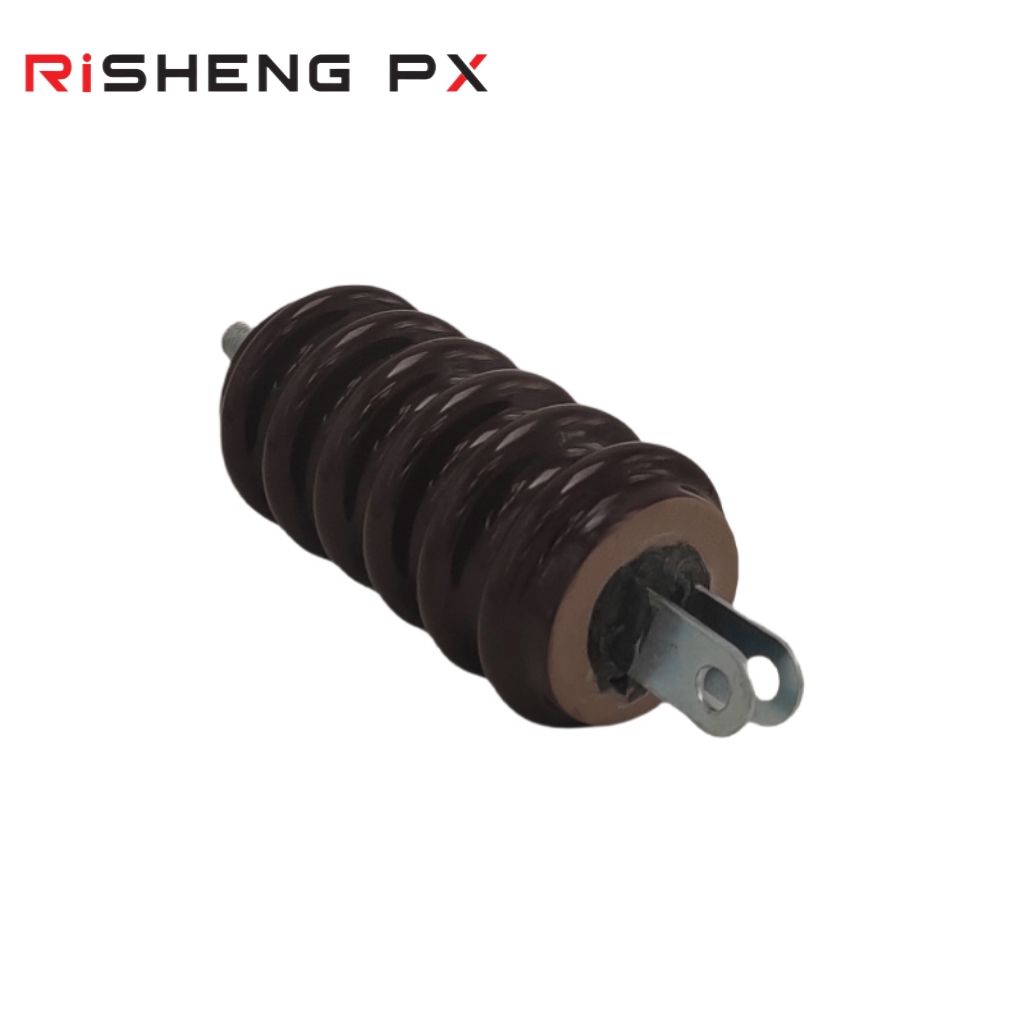

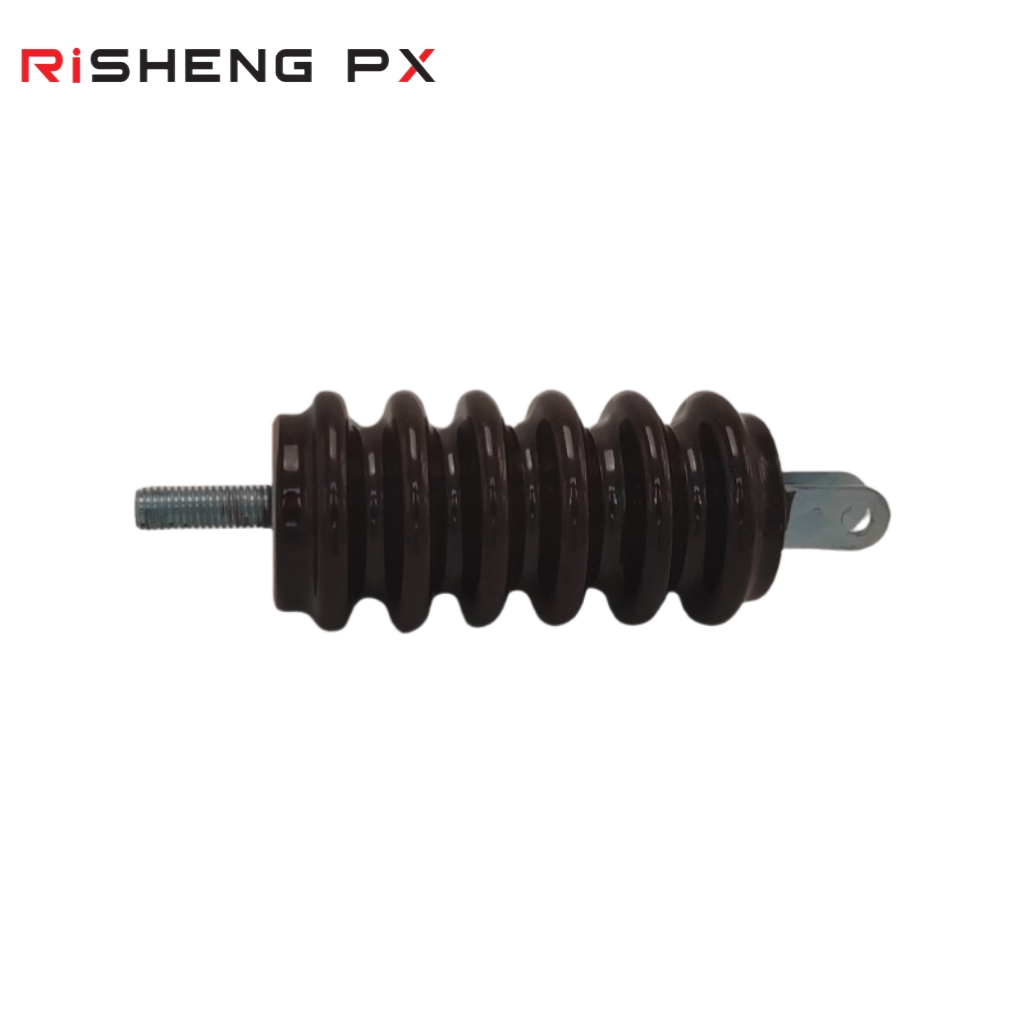

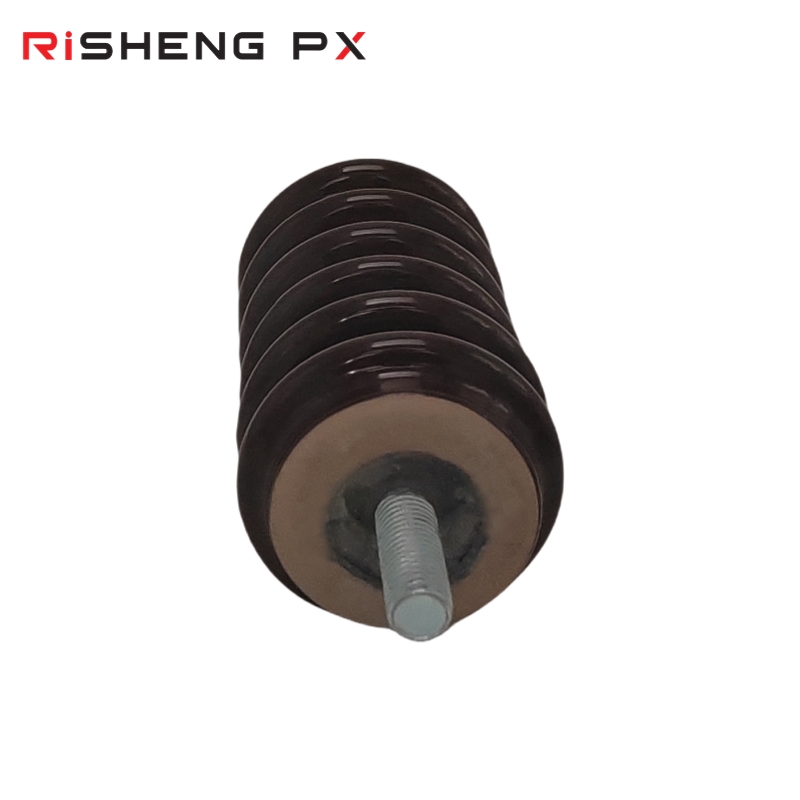

Изолятор ИТГР-10-750-65 У3 Connector Insulators

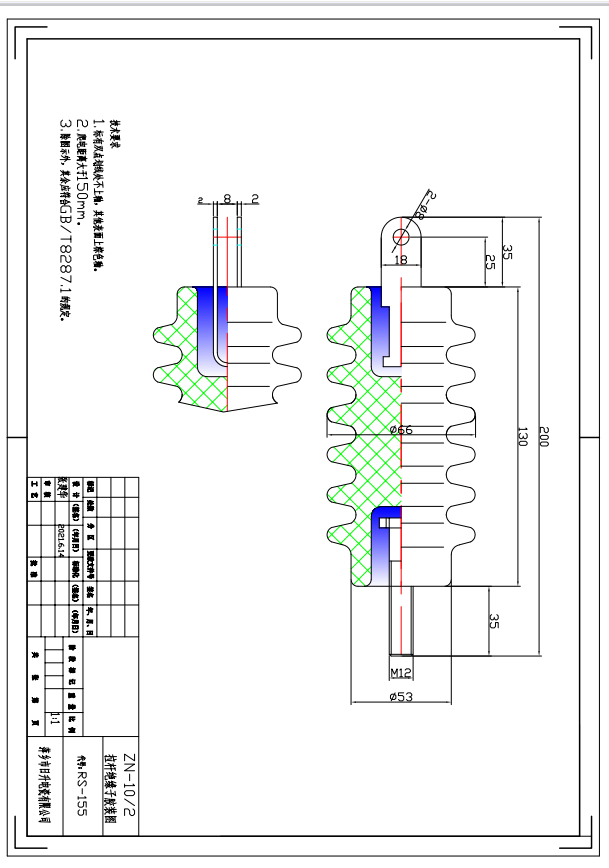

Structural Features:

1. Porcelain Body: Constructed from premium porcelain material, offering superior insulation performance and mechanical robustness to guarantee stable operation in power systems.
2. Metal Fittings: Equipped with sturdy metal end fittings that ensure dependable connection with transmission lines and towers, and possess excellent corrosion resistance.
3. Connector Structure: The specialized connector design enhances the mechanical load - bearing capacity, enabling it to effectively withstand the tension and weight from conductors.
4. Umbrella Shape Design: The umbrella - shaped structure on the porcelain body increases the creepage distance, improving the pollution - flashover voltage resistance and ensuring safe operation in polluted environments.

Electrical Performance Features:

1. Rated Voltage: Capable of withstanding a rated voltage of 10KV, meeting the insulation requirements of medium - voltage power transmission and distribution systems.
2. Lightning Impulse Withstand Voltage: Can endure high lightning impulse voltage, providing effective protection against lightning strikes in power lines.
3. Power Frequency Withstand Voltage: Demonstrates stable power frequency voltage - withstanding capability, ensuring no breakdown under normal power frequency operating conditions.
4. Insulation Resistance: Has high insulation resistance, which helps to maintain good insulation performance during long - term operation.

Installation Process:

1. Preparation: Inspect the insulator for any damage and ensure the mounting hardware is complete and in good condition.
2. Connector Installation: Use appropriate tools to connect the insulator between the tower and the conductor, ensuring correct alignment.
3. Connection: Securely connect the metal end fittings of the insulator to the tower and conductor, using suitable connectors and ensuring tight connections.
4. Inspection: After installation, visually inspect the insulator to ensure there is no damage and the connection is secure, and conduct necessary electrical tests if required.

Applicable Environmental Conditions:

1. Temperature Range: Designed to operate within a wide temperature range, typically - 40℃ to + 80℃, suitable for use in various climatic regions.
2. Pollution Resistance: The porcelain material and umbrella shape design make it resistant to pollution accumulation, ensuring reliable insulation performance in polluted areas.
3. Moisture Resistance: Can perform well in high - humidity environments, preventing moisture from affecting the insulation performance.
4. Mechanical Durability: Built to withstand mechanical stresses such as wind loads and conductor vibrations, ensuring long - term structural integrity.
