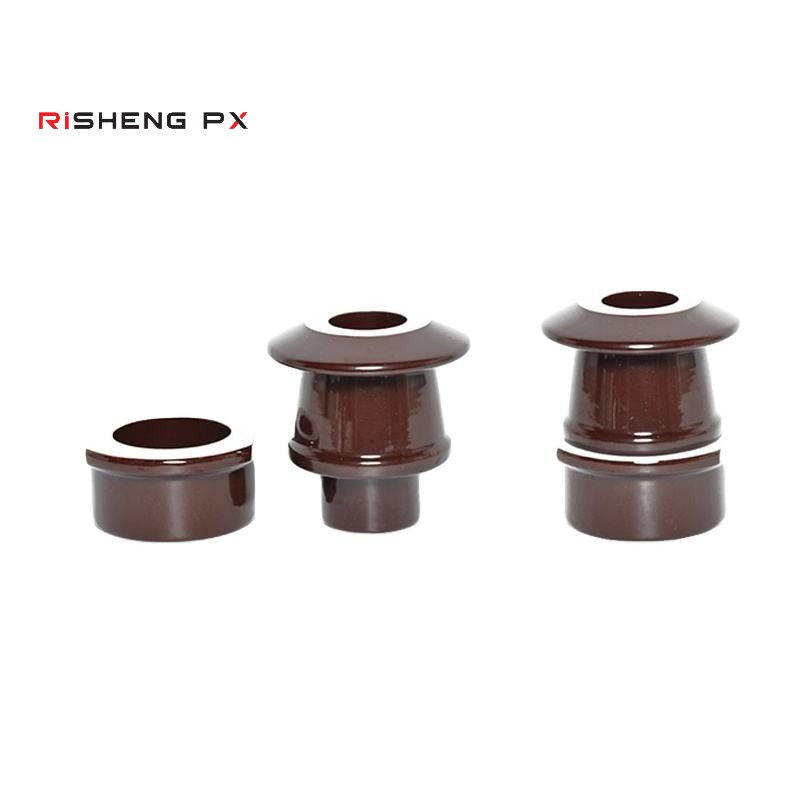

1 (1).jpg

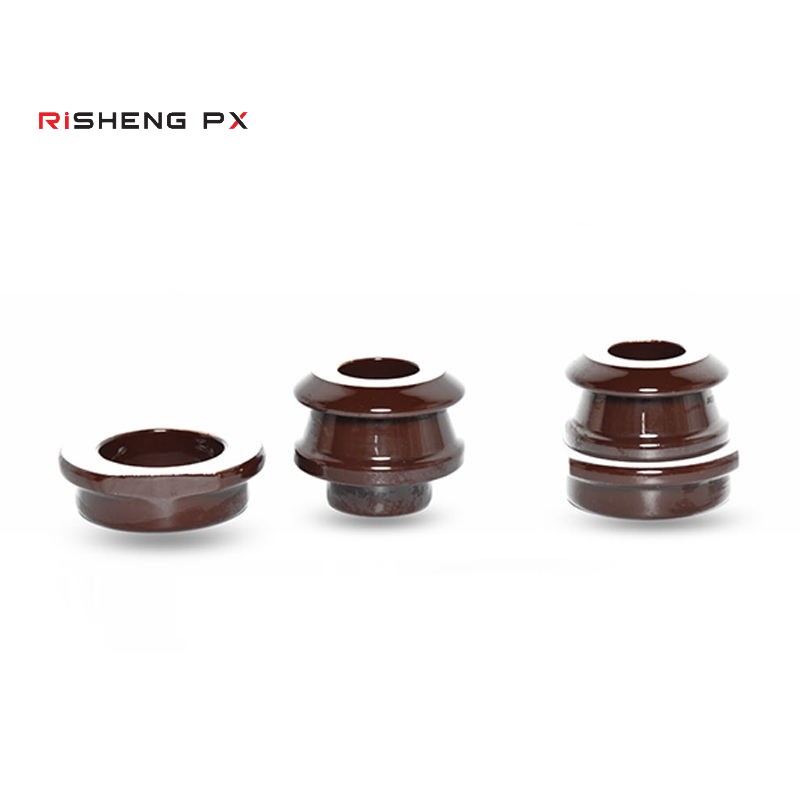

1 (2).jpg

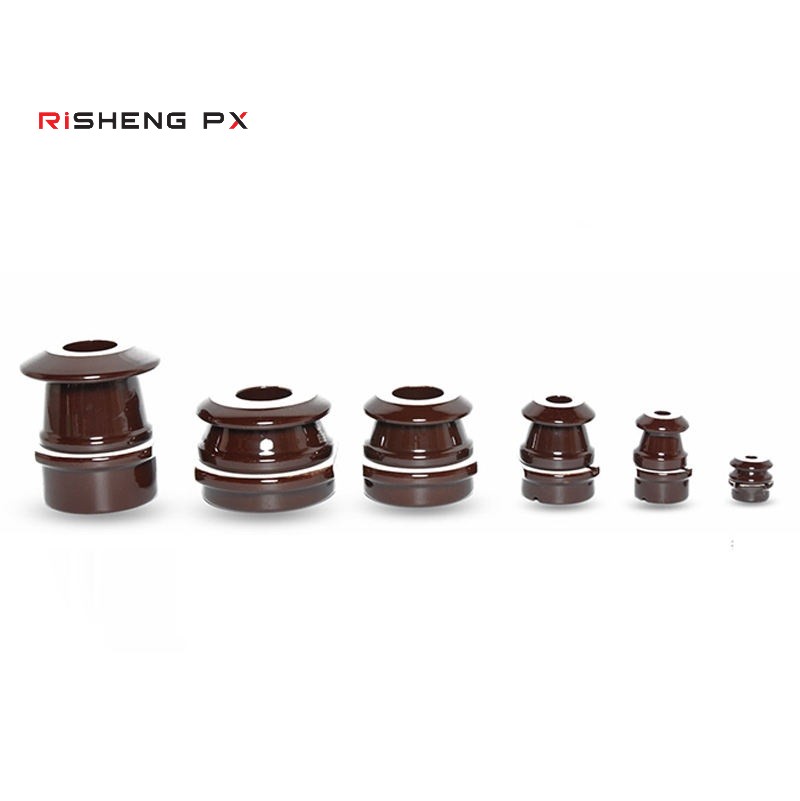

1 (3).jpg

DT Low Voltage Transformer Bushing Porcelain Material to DIN 42530 Standard

Origin: Jiangxi, China
Brand Name: Risheng PX
Model: DT Low Voltage Insulators
Material: Porcelain
Application: Transformer
Rated Voltage:1kv
Color: Brown
Certification: ISO9001 and ISO14001
Standard: DIN
Advantage: factory price and fast delivery
    Contact us
    Product Details

    PART NUMBER DESCRIPTION Voltage RATING(KV) I RATING(A) TANK HOLESIZE
    mm    		 BIL(KV) PF DRY PF WET CREEPAGE STEM CONNECTOR
    DT 1/250 DIN 42530 1/250 1KV 250 - - - - 60 M12
    DT 1/630 DIN 42530 1/630 1KV 630 45 - - - 75 M20
    DT 1/1000 DIN 42530 1/1000 1KV 1000 56 - - - 75 M30
    DT 1/2000 DIN 42530 1/2000 1KV 2000 70 - - - 75 M42
    DT 1/3150 DIN 42530 1/3150 1KV 3150 90 - - - 75 M48
    DT 3/250 DIN 42539 3/250 3KV 250 39 40 14 10 120 M12
    DT 3/630 DIN 42539 3/630 3KV 630 45 40 14 10 120 M20
    DT 3/1000 DIN 42539 3/1000 3KV 1000 56 40 14 10 125 M30
    DT 3/2000 DIN 42539 3/2000 3KV 2000 70 40 14 10 125 M42
    DT 3/3150 DIN 42539 3/3150 3KV 3150 90 40 14 10 125 M48
    DT 3/4500 DIN 42539 3/4500 3KV 4500 119 40 14 10 130 M55
    DT 3/6500 DIN 42539 3/6500 3KV 6500 119 40 14 10 130 M75
    10NF250 DIN 42531 10NF250 12KV 250 78 75 28 - 305 M12
    10NF630 DIN 42532 10NF630 12KV 630 90 75 28 - 305 M20
    10NF1000 DIN 42533 10NF1000 12KV 1000 110 75 28 - 295 M30
    10NF2000 DIN 42533 10NF2000 12KV 2000 135 75 28 - 295 M42
    10NF3150 DIN 42533 10NF3150 12KV 3150 135 75 28 - 295 M48
    20NF250 DIN 42531 20NF250 24KV 250 78 125 50 - 450 M12
    20NF630 DIN 42532 20NF630 24KV 630 90 125 50 - 440 M20
    20NF1000 DIN 42533 20NF1000 24KV 1000 110 125 50 - 445 M30
    20NF2000 DIN 42533 20NF2000 24KV 2000 135 125 50 - 445 M42
    20NF3150 DIN 42533 20NF3150 24KV 3150 135 125 50 - 445 M48
    30NF250 DIN 42531 30NF250 36KV 250 78 170 70 - 607 M12
    30NF630 DIN 42532 30NF630 36KV 630 90 170 70 - 662 M20
    30NF1000 DIN 42533 30NF1000 36KV 1000 110 170 70 - 635 M30
    30NF2000 DIN 42533 30NF2000 36KV 2000 135 170 70 - 635 M42
    30NF3150 DIN 42533 30NF3150 36KV 3150 135 170 70 - 635 M48
